ontology
plot.ontology
Plots of the ontology graph and of a model’s place in it.
# | fig-align: center
import matplotlib.pyplot as plt
from tvbo import plot
fig, ax = plt.subplots()

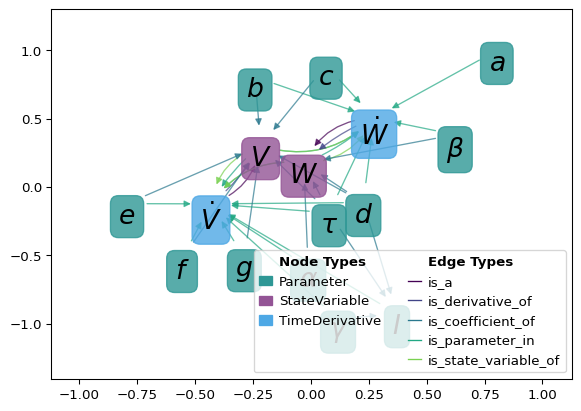

plot.ontology.plot_model('Generic2dOscillator', ax=ax)Attributes
| Name | Description |
|---|---|
| color_params | |
| edge_params | |
| figure_params | |
| layout_params | |
| legend_params | |
| logo_params | |
| node_params |
Functions
| Name | Description |
|---|---|
| add_arrow | Add an arrow to a line. |
| adjust_arrow_end | Clip an arrow’s endpoint to the edge of the target node’s bounding box. |
| compute_bezier_midpoint | Compute the midpoint of a quadratic Bézier curve at a given t. |
| compute_midpoint | Compute the midpoint of a quadratic Bézier curve. |
| count_directed_edges | Count number of edges between each directed node pair (u, v), not treating (u, v) ≡ (v, u). |
| create_adj_matrix | Build an adjacency mapping of directed node pairs to their edge descriptors. |
| create_colormap_legend | Create a space-efficient legend for given edge and node colormap dictionaries. |
| draw_custom_arrows | Draw custom arrows on a graph G with given positions and styles. |
| draw_custom_edges | Draw curved Bézier edges between connected node pairs on an axes. |
| draw_custom_nodes | Custom function to draw nodes as text in a network graph. |
| draw_edge_labels | A function to draw the edge labels on the graph. The labels are extracted from the edge attributes and can be customized using various parameters in the params dictionary. |
| draw_edges | A function to draw the edges on the graph. Depending on the parameters, it can draw colored edges and adjust the width of the edges. |
| draw_legend | A function to draw the legend on the graph. The legend is created based on the node types and their respective colors, which are derived from the ‘tvb_colors’ parameter in the params dictionary. |
| draw_nodes | A function to draw the nodes on the graph with specified attributes such as color, size, and using a specified colormap. |
| get_actual_bounds | Compute the data-coordinate extent of all rendered text on an axes. |
| get_ax | A function to get the ax for the plot. If ax is None, a new figure and ax are created using the specified figsize. |
| get_categories_from_graph | Retrieve all unique categories from the graph’s nodes. |
| get_category_from_graph | Retrieve the category of a given node from the graph. |
| get_default_params | Return the merged dictionary of all default plotting parameters. |
| get_edge_color_mapping | Generate a color mapping for edges in graph G based on their specified attribute. |
| get_edge_info | Return the edge counts and edge lists between two nodes in both directions. |
| get_labels | Generate labels for the nodes in the graph based on the node names and ontology search results. If the label_as_symbol parameter is True, the labels are formatted as LaTeX symbols. Additionally, specific substrings (“_RWW”) are removed from the labels. |
| get_layout | Get the layout positions for the nodes in the graph. |
| get_node_color_and_cmap | A function to get the node colors and the colormap based on node attributes such as type or degree. |
| get_node_color_mapping | Generate a color mapping for nodes in graph G based on their specified attribute. |
| get_node_size | A function to get the node size for the graph, which can be determined by various parameters including the degree of the nodes, the length of the labels, or a specified factor. |
| get_unique_node_pairs | Return the set of unordered node pairs that share at least one edge. |
| hierarchy_pos | If the graph is a DAG this will return the positions to plot this in a hierarchical layout. |
| n1n2_edgecounts | Return the number of edges between nodes n1 and n2, treating (n1, n2) ≡ (n2, n1). |
| plot_curve | Draw a quadratic Bézier arrow from start to end on ax. |
| plot_edge | Draw a single edge as an arrow ending at the target node’s box edge. |
| plot_hierarchy | Plot the ontology class hierarchy around a given class as a tree. |
| plot_model | Render a Dynamics model as a directed graph: parameters → equations → state vars. |
| plot_multidigraph | Plots a MultiDiGraph with curved edges to visualize multiple edges between two nodes. |
| plot_ontology_graph | Plot the ontology graph using matplotlib. |
| plot_tvbo_graph | A function to plot a TVBO graph with various customizable parameters. |
| relabel_graph | A function to relabel the nodes of the graph if a relabel dictionary is provided. |
| reverse_edges | Reverse the coordinates of the positions in the pos dictionary. |
| set_axis_limits | Set the axis limits based on node positions. |
| set_plt_params | A function to set certain plt parameters. |
| validate_parameters | A function to validate and set default values for various parameters. |
add_arrow
plot.ontology.add_arrow(
line,
ax,
position=None,
direction='right',
color=None,
label='',
)Add an arrow to a line.
line: Line2D object position: x-position of the arrow. If None, mean of xdata is taken direction: ‘left’ or ‘right’ color: if None, line color is taken. label: label for arrow
adjust_arrow_end
plot.ontology.adjust_arrow_end(start, end, bbox_end)Clip an arrow’s endpoint to the edge of the target node’s bounding box.
Computes where the line from start to end crosses the top or bottom edge of bbox_end (chosen by arrow direction) and clamps the crossing to the box’s horizontal extent, so the arrow stops at the node border instead of its center.
Parameters
| Name | Type | Description | Default |
|---|---|---|---|
| start | (x, y) start coordinate of the arrow. |
required | |
| end | (x, y) target coordinate at the node center. |
required | |
| bbox_end | Bounding box of the target node, exposing a .bounds tuple. |
required |
Returns
| Name | Type | Description |
|---|---|---|
The adjusted (x, y) endpoint on the target box edge. |
compute_bezier_midpoint
plot.ontology.compute_bezier_midpoint(p0, p1, p2, t=0.5)Compute the midpoint of a quadratic Bézier curve at a given t.
Parameters: - p0, p1, p2: Control points of the Bézier curve. - t: The parameter at which to evaluate the midpoint (default is 0.5 for true midpoint).
Returns: - tuple of (x, y) coordinates of the midpoint.
compute_midpoint
plot.ontology.compute_midpoint(start, end, rad)Compute the midpoint of a quadratic Bézier curve.
Parameters: - start: tuple of (x, y) coordinates of the start point. - end: tuple of (x, y) coordinates of the end point. - rad: curvature radius as a percentage.
Returns: - tuple of (x, y) coordinates of the midpoint.
count_directed_edges
plot.ontology.count_directed_edges(G)Count number of edges between each directed node pair (u, v), not treating (u, v) ≡ (v, u).
Returns
| Name | Type | Description |
|---|---|---|
| dict[tuple[Any, Any], int] | Dict[Tuple[Any, Any], int]: Mapping (u, v) → count of edges from u to v. |
create_adj_matrix
plot.ontology.create_adj_matrix(G)Build an adjacency mapping of directed node pairs to their edge descriptors.
Parameters
| Name | Type | Description | Default |
|---|---|---|---|
| G | A networkx graph whose adjacency structure is traversed. | required |
Returns
| Name | Type | Description |
|---|---|---|
A dictionary mapping each (node, neighbor) pair to a list of dicts, one |
||
per edge, each holding the edge type and a direction string. |
create_colormap_legend
plot.ontology.create_colormap_legend(
edge_colmap=None,
node_colmap=None,
ax=None,
fontsize=12,
title_fontsize=14,
edge_cols=8,
node_cols=8,
)Create a space-efficient legend for given edge and node colormap dictionaries.
Parameters
| Name | Type | Description | Default |
|---|---|---|---|
| edge_colmap | Labels mapped to RGBA tuples, for edges. | None |
|
| node_colmap | Labels mapped to RGBA tuples, for nodes. | None |
|
| ax | Axes to draw the legend on. A new figure is created when None. | None |
|
| fontsize | Font size for the legend labels. | 12 |
|
| title_fontsize | Font size for the legend titles. | 14 |
|
| edge_cols | Columns the edge legend is laid out in; also sets how far the y-axis is inflated to make room. | 8 |
|
| node_cols | Columns the node legend is laid out in. | 8 |
draw_custom_arrows
plot.ontology.draw_custom_arrows(
G,
pos,
edge_width=1,
ax=None,
edge_colors='grey',
edge_labels=False,
scatter_edges=True,
color_by=None,
return_color_mapping=False,
radius=-0.3,
**kwargs,
)Draw custom arrows on a graph G with given positions and styles.
Parameters
| Name | Type | Description | Default |
|---|---|---|---|
| G | networkx.Graph | The graph on which arrows will be drawn. | required |
| pos | dict | A dictionary with nodes as keys and positions as values. Positions should be tuples of (x, y) coordinates. | required |
| edge_width | int | Width of the edges. Defaults to 1. | 1 |
| ax | matplotlib.axes.Axes | Matplotlib axes object to draw the arrows on. If None, the current axes will be used. Defaults to None. | None |
| edge_colors | str or list | Color(s) of the edges. If a single string, all edges will have the same color. If a list, it should be the same length as the number of edges. Defaults to “grey”. | 'grey' |
| scatter_edges | bool | If True, scatter multiple edges between nodes to make them distinguishable. Defaults to False. | True |
| edge_labels | bool | Annotate each arrow with its edge type. Defaults to False. | False |
| color_by | str | Edge attribute whose value selects the colour. Defaults to None, which uses edge_colors for every edge. |
None |
| return_color_mapping | bool | Return the attribute-value → colour dict instead of None. Defaults to False. | False |
| radius | float | Curvature of the arrows; negative bends left. Defaults to -0.3. | -0.3 |
| **kwargs | Any | Additional keyword arguments to customize arrow properties. This can include: connectionstyle (str, optional): The connection style of the arrows. More info: https://matplotlib.org/stable/gallery/userdemo/connectionstyle_demo.html. Defaults to “arc3, rad=-0.3”. arrowstyle (str, optional): The style of the arrow. Defaults to “-|>,head_length=0.4,head_width=0.2”. mutation_scale (float, optional): The scale factor for the arrow head. Defaults to 10.0. shrinkA (float, optional): Shrink factor at the start of the arrow. Defaults to 15. shrinkB (float, optional): Shrink factor at the end of the arrow. Defaults to 15. | {} |
Returns
| Name | Type | Description |
|---|---|---|
| dict[Any, Any] | None | Optional[Dict[Any, Any]]: Color mapping if return_color_mapping is True, otherwise None. |
Example
import networkx as nx
import matplotlib.pyplot as plt
from tvbo.plot.ontology import draw_custom_arrows, draw_custom_nodes
G = nx.DiGraph()
G.add_edges_from([(0, 1, {"type": 1}), (1, 2, {"type": 2}), (0, 2, {"type": 3})])
pos = {0: (0, 0), 1: (1, 1), 2: (2, 0)}
fig, ax = plt.subplots(figsize=(2,2))
draw_custom_nodes(G, pos, ax=ax)
draw_custom_arrows(G, pos, ax=ax, color_by="type", edge_colors="viridis")
ax.axis("off");Notes
This function uses FancyArrowPatch from matplotlib.patches to draw arrows.
draw_custom_edges
plot.ontology.draw_custom_edges(
G,
pos,
ax=None,
edge_labels=False,
color_by='type',
edge_colors='#606060',
edge_radius=0,
**kwargs,
)Draw curved Bézier edges between connected node pairs on an axes.
For every unique node pair, edges in each direction are fanned out with distinct curvature so that parallel and bidirectional edges stay distinguishable. Colors may be a single color or resolved from a colormap.
Parameters
| Name | Type | Description | Default |
|---|---|---|---|
| G | The graph whose edges are drawn. | required | |
| pos | Mapping of nodes to (x, y) positions. |
required | |
| ax | Target matplotlib axes. | None |
|
| edge_labels | Whether to annotate each edge with its type. |
False |
|
| color_by | Edge attribute used to look up colors when edge_colors names a colormap. |
'type' |
|
| edge_colors | A single color, or the name of a colormap to map edge attributes onto. | '#606060' |
|
| edge_radius | Curvature used when a pair has a single edge. | 0 |
|
| **kwargs | Additional keyword arguments forwarded to plot_curve. |
{} |
draw_custom_nodes
plot.ontology.draw_custom_nodes(
G,
pos,
labels=None,
font_size=10,
ax=None,
node_colors=None,
alpha=0.8,
facecolor=None,
edgecolor=None,
)Custom function to draw nodes as text in a network graph.
Parameters:
G : networkx.Graph The graph on which nodes will be drawn. pos : dict A dictionary with nodes as keys and positions as values. Positions should be tuples of (x, y) coordinates. labels : dict, optional A dictionary with node labels. If None, nodes are labeled with node names. font_size : int, optional The font size of the node labels (default is 10). ax : matplotlib.axes.Axes, optional Matplotlib axes object to draw the nodes on. If None, the current axes will be used (default is None). node_colors : dict or str, optional A dictionary specifying the color for each node or a single color for all nodes (default is None).
Returns:
list A list of text objects for the node labels.
draw_edge_labels
plot.ontology.draw_edge_labels(g, pos, ax, params)A function to draw the edge labels on the graph. The labels are extracted from the edge attributes and can be customized using various parameters in the params dictionary.
Parameters: g (networkx.Graph): The graph on which the edge labels are to be drawn. pos (dict): The positions of the nodes. ax (matplotlib.axes._axes.Axes): The ax on which the edge labels are to be drawn. params (dict): A dictionary with various parameters including ‘edge_font_size’.
Returns: None
draw_edges
plot.ontology.draw_edges(g, pos, ax, params)A function to draw the edges on the graph. Depending on the parameters, it can draw colored edges and adjust the width of the edges.
Parameters: g (networkx.Graph): The graph on which the edges are to be drawn. pos (dict): The positions of the nodes. ax (matplotlib.axes._axes.Axes): The ax on which the edges are to be drawn. params (dict): A dictionary with various parameters including ‘colored_edges’ and ‘edge_width’.
Returns: None
draw_legend
plot.ontology.draw_legend(g, ax, params)A function to draw the legend on the graph. The legend is created based on the node types and their respective colors, which are derived from the ‘tvb_colors’ parameter in the params dictionary.
Parameters: g (networkx.Graph): The graph on which the legend is to be drawn. ax (matplotlib.axes._axes.Axes): The ax on which the legend is to be drawn. params (dict): A dictionary with various parameters including ‘tvb_colors’ and ‘c_order’.
Returns: None
draw_nodes
plot.ontology.draw_nodes(g, pos, node_color, cmap, node_size, ax, params)A function to draw the nodes on the graph with specified attributes such as color, size, and using a specified colormap.
Additional parameters like linewidth and alpha are taken from the params dictionary.
Parameters: g (networkx.Graph): The graph on which the nodes are to be drawn. pos (dict): The positions of the nodes. node_color: The color of the nodes, specified either as a single color or a list of colors. cmap: The colormap for the nodes. node_size: The size of the nodes, specified either as a single size or a list of sizes. ax (matplotlib.axes._axes.Axes): The ax on which the nodes are to be drawn. params (dict): A dictionary with various parameters including ‘alpha’ and ‘node_linewidth’.
Returns: None
get_actual_bounds
plot.ontology.get_actual_bounds(ax, axis='x')Compute the data-coordinate extent of all rendered text on an axes.
Iterates over the non-empty text artists, transforms each one’s window extent into data coordinates, and returns the min and max along the requested axis. The axes must already be drawn so that text extents are available.
Parameters
| Name | Type | Description | Default |
|---|---|---|---|
| ax | The matplotlib axes to inspect. | required | |
| axis | Either "x" or "y", selecting which axis to bound. |
'x' |
Returns
| Name | Type | Description |
|---|---|---|
A (min, max) tuple of the text bounds along the selected axis. |
get_ax
plot.ontology.get_ax(ax, figsize)A function to get the ax for the plot. If ax is None, a new figure and ax are created using the specified figsize.
Parameters: ax (matplotlib.axes._axes.Axes or None): The ax parameter passed to the function. If None, a new ax is created. figsize (tuple): The size of the figure, specified as a tuple of width and height.
Returns: matplotlib.axes._axes.Axes: The ax for the plot.
get_categories_from_graph
plot.ontology.get_categories_from_graph(G)Retrieve all unique categories from the graph’s nodes.
Parameters:
G : networkx.Graph The graph from which categories are to be retrieved.
Returns:
list A sorted list of unique categories from the graph.
get_category_from_graph
plot.ontology.get_category_from_graph(G, node)Retrieve the category of a given node from the graph.
Parameters:
G : networkx.Graph The graph containing the node. node : hashable The node for which the category is to be retrieved.
Returns:
str The category of the node.
get_default_params
plot.ontology.get_default_params()Return the merged dictionary of all default plotting parameters.
Combines the module-level node_params, edge_params, figure_params, color_params, logo_params, layout_params, and legend_params into a single dictionary.
Returns
| Name | Type | Description |
|---|---|---|
| The combined default parameters, keyed by parameter name. |
get_edge_color_mapping
plot.ontology.get_edge_color_mapping(G, colormap='viridis', color_by='type')Generate a color mapping for edges in graph G based on their specified attribute.
Parameters:
G : networkx.Graph The graph containing the edges with the specified attribute. colormap : str, optional The name of the colormap to use (default is ‘viridis’). color_by : str, optional The edge attribute to color by (default is ‘type’).
Returns:
edge_colors : dict A dictionary mapping edge attributes to colors.
get_edge_info
plot.ontology.get_edge_info(n1, n2, adj_matrix)Return the edge counts and edge lists between two nodes in both directions.
Parameters
| Name | Type | Description | Default |
|---|---|---|---|
| n1 | First node. | required | |
| n2 | Second node. | required | |
| adj_matrix | Adjacency mapping from (source, target) pairs to lists of edge descriptors, as produced by create_adj_matrix. |
required |
Returns
| Name | Type | Description |
|---|---|---|
A 4-tuple (num_edges_n1_n2, edges_n1_n2, num_edges_n2_n1, edges_n2_n1) |
||
giving the count and list of edges from n1 to n2 and from n2 to n1. |
get_labels
plot.ontology.get_labels(g, label_as_symbol)Generate labels for the nodes in the graph based on the node names and ontology search results. If the label_as_symbol parameter is True, the labels are formatted as LaTeX symbols. Additionally, specific substrings (“_RWW”) are removed from the labels.
Parameters: g (networkx.Graph): The graph object containing the nodes for which labels are to be generated. label_as_symbol (bool): A flag indicating whether to format the labels as LaTeX symbols.
Returns: dict: A dictionary where keys are node names and values are the corresponding labels.
get_layout
plot.ontology.get_layout(
G,
layout_type='spring',
k_factor=1,
save_pos=None,
use_precomputed_pos=None,
)Get the layout positions for the nodes in the graph.
Parameters:
G : networkx.Graph The graph for which the layout positions are calculated. layout_type : str, optional The type of layout algorithm to use (‘spring’, ‘kamada’, etc.) (default is “spring”). k_factor : float, optional Scaling factor for the layout algorithm (default is 1). save_pos : str, optional Path to save the computed positions to a file (default is None). use_precomputed_pos : str, optional Path to a file with precomputed positions (default is None).
Returns:
dict A dictionary with nodes as keys and positions as values.
get_node_color_and_cmap
plot.ontology.get_node_color_and_cmap(g, params=None)A function to get the node colors and the colormap based on node attributes such as type or degree.
Parameters: g (networkx.Graph): The graph for which the node colors and colormap are to be generated. params (dict): A dictionary with various parameters including node_filling and tvb_colors.
Returns: tuple: A tuple with the node colors and the colormap.
get_node_color_mapping
plot.ontology.get_node_color_mapping(
G,
node_colors='math_type',
colors='tvb',
return_categories=False,
)Generate a color mapping for nodes in graph G based on their specified attribute.
Parameters:
G : networkx.Graph The graph containing the nodes with the specified attribute. node_colors : str, optional The node attribute to color by (default is ‘math_type’). colors : str, optional The color scheme to use (default is ‘tvb’).
Returns:
node_color_dict : dict A dictionary mapping node attributes to colors. categories : dict A dictionary mapping nodes to their categories.
get_node_size
plot.ontology.get_node_size(g, params=None)A function to get the node size for the graph, which can be determined by various parameters including the degree of the nodes, the length of the labels, or a specified factor.
Parameters: g (networkx.Graph): The graph for which the node size is to be generated. pos (dict): The positions of the nodes. labels (dict): The labels of the nodes. params (dict): A dictionary with various parameters including ‘node_size_by’ and ‘node_size_factor’.
Returns: list or int: A list with the node sizes or a single integer representing a uniform node size for all nodes.
get_unique_node_pairs
plot.ontology.get_unique_node_pairs(G)Return the set of unordered node pairs that share at least one edge.
Each pair is sorted so that (a, b) and (b, a) collapse to a single entry; nodes are ordered by their string value or, for object nodes, their name attribute.
Parameters
| Name | Type | Description | Default |
|---|---|---|---|
| G | A networkx graph to extract edges from. | required |
Returns
| Name | Type | Description |
|---|---|---|
| A set of node-pair tuples, one per connected pair regardless of direction. |
hierarchy_pos
plot.ontology.hierarchy_pos(
G,
root=None,
width=1.0,
vert_gap=0.2,
hor_gap=1,
vert_loc=0,
xcenter=0.5,
direction='down',
vert_scatter=0.0,
)If the graph is a DAG this will return the positions to plot this in a hierarchical layout.
G: the graph (must be a DAG) root: the root node of current branch width: horizontal space allocated for this branch vert_gap: gap between levels of hierarchy hor_gap: gap between nodes within the same level vert_loc: vertical location of root xcenter: horizontal location of root direction: ‘down’ for top-down layout, ‘up’ for bottom-up layout vert_scatter: vertical scatter factor for nodes on the same level
n1n2_edgecounts
plot.ontology.n1n2_edgecounts(G, n1, n2, edge_counts=None)Return the number of edges between nodes n1 and n2, treating (n1, n2) ≡ (n2, n1).
Parameters
| Name | Type | Description | Default |
|---|---|---|---|
| G | networkx.Graph or MultiGraph | Input graph. | required |
| n1 | hashable | First node identifier. | required |
| n2 | hashable | Second node identifier. | required |
| edge_counts | dict | Precomputed output from count_directed_edges(G). | None |
Returns
| Name | Type | Description |
|---|---|---|
| int | int | Number of edges between n1 and n2, regardless of direction. |
plot_curve
plot.ontology.plot_curve(
ax,
start,
end,
rad,
color='black',
shrinkA=0,
shrinkB=0.03,
arrow_size=0.1,
arrow_style='->',
annotate=None,
**kwargs,
)Draw a quadratic Bézier arrow from start to end on ax.
Used internally by the ontology-graph layout to render edges with smooth curvature controlled by rad. Optional annotate renders a midpoint label.
Parameters
| Name | Type | Description | Default |
|---|---|---|---|
| ax | Any | Target matplotlib axes. | required |
| start | tuple[float, float] | (x, y) start coordinate. |
required |
| end | tuple[float, float] | (x, y) end coordinate. |
required |
| rad | float | Curvature offset; 0 is a straight line, positive bends right. |
required |
| color | str | Stroke color. | 'black' |
| shrinkA | float | Start-point shrinkage (fraction of segment length). | 0 |
| shrinkB | float | End-point shrinkage (fraction of segment length). | 0.03 |
| arrow_size | float | Head width. | 0.1 |
| arrow_style | str | Matplotlib arrow style (e.g. "->", "-\|>"). |
'->' |
| annotate | str | None | Optional midpoint label string. | None |
| **kwargs | Forwarded to FancyArrowPatch. |
{} |
plot_edge
plot.ontology.plot_edge(edge, pos, bbox_positions_data, ax, **kwargs)Draw a single edge as an arrow ending at the target node’s box edge.
Parameters
| Name | Type | Description | Default |
|---|---|---|---|
| edge | A (source, target) node pair. |
required | |
| pos | Mapping of nodes to (x, y) positions. |
required | |
| bbox_positions_data | Mapping of nodes to their bounding boxes, used to trim the arrow so it stops at the target node’s border. | required | |
| ax | Target matplotlib axes. | required | |
| **kwargs | Additional keyword arguments forwarded to FancyArrowPatch. |
{} |
plot_hierarchy
plot.ontology.plot_hierarchy(cls, hierarchy_type='ancestors', ax=None, **kwargs)Plot the ontology class hierarchy around a given class as a tree.
Builds an is_a graph relating cls to the requested set of related classes and lays it out top-down or bottom-up depending on the hierarchy direction.
Parameters
| Name | Type | Description | Default |
|---|---|---|---|
| cls | The ontology class at the center of the hierarchy. | required | |
| hierarchy_type | Which related classes to include; one of "ancestors", "parents"/"is_a"/"isa"/"superclasses", "children"/"subclasses", or "descendants". |
'ancestors' |
|
| ax | Existing matplotlib axes; a new figure is created if None. |
None |
|
| **kwargs | Additional keyword arguments forwarded to hierarchy_pos. |
{} |
Returns
| Name | Type | Description |
|---|---|---|
The created figure when ax is None, otherwise nothing. |
plot_model
plot.ontology.plot_model(
model,
k_factor=1,
edge_cmap='viridis',
node_cmap='viridis',
edge_width=1,
font_size=20,
node_colors='math_type',
add_equations_to_labels=False,
add_parameter_values=False,
circle_matches=False,
ax=None,
legend=True,
figsize=(10, 6),
legend_kwargs=None,
edge_kwargs=None,
node_kwargs=None,
**kwargs,
)Render a Dynamics model as a directed graph: parameters → equations → state vars.
The graph layout is computed via a force-directed algorithm tuned by k_factor. Node coloring is driven by the variable’s math_type (parameter / derived variable / state variable / function) unless overridden.
Parameters
| Name | Type | Description | Default |
|---|---|---|---|
| model | Any | A Dynamics instance. |
required |
| k_factor | float | Spring-constant multiplier for the force-directed layout. | 1 |
| edge_cmap | str | Matplotlib colormap name for edges. | 'viridis' |
| node_cmap | str | Matplotlib colormap name for nodes. | 'viridis' |
| edge_width | float | Stroke width for edges (auto-scaled with font_size). | 1 |
| font_size | float | Axes font size; also rescales edge width. | 20 |
| node_colors | Any | Either a category attribute ("math_type") or a dict of overrides. |
'math_type' |
| add_equations_to_labels | bool | Append the LaTeX equation to each node label. | False |
| add_parameter_values | bool | Append the current value to parameter labels. | False |
| circle_matches | bool | Draw a circle around nodes whose name matches the model’s coupling vars. | False |
| ax | Any | Existing matplotlib axes; created if None. |
None |
| legend | bool | Whether to render the category legend. | True |
| legend_kwargs | dict | Forwarded to the legend constructor. | None |
| figsize | tuple[float, float] | Figure size when ax is None. |
(10, 6) |
| edge_kwargs | dict | Forwarded to the edge-drawing helper. | None |
| node_kwargs | dict | Forwarded to the node-drawing helper. | None |
| **kwargs | Forwarded to the layout routine. | {} |
plot_multidigraph
plot.ontology.plot_multidigraph(G, figsize=(12, 8))Plots a MultiDiGraph with curved edges to visualize multiple edges between two nodes.
Parameters
| Name | Type | Description | Default |
|---|---|---|---|
| G | networkx.MultiDiGraph | The MultiDiGraph to be plotted. | required |
| figsize | Tuple[int, int] | Figure size. Defaults to (12, 8). | (12, 8) |
Returns
| Name | Type | Description |
|---|---|---|
| None | None |
plot_ontology_graph
plot.ontology.plot_ontology_graph(
G,
node_size_factor=10,
draw_labels=False,
edge_width=1.0,
k_factor=1,
colors='viridis',
edge_colors='grey',
preferred_label='symbol',
alternative_label='label',
font_size=12,
legend=True,
edge_legend=True,
ax=None,
colorby='category',
**kwargs,
)Plot the ontology graph using matplotlib.
Parameters
| Name | Type | Description | Default |
|---|---|---|---|
| G | networkx.DiGraph | A directed graph representation of the ontology. | required |
| node_size_factor | int | Factor by which node size is multiplied. Defaults to 10. | 10 |
| draw_labels | bool | Whether to draw node labels. Defaults to False. | False |
| edge_width | float | Width of the edges. Defaults to 1.0. | 1.0 |
| k_factor | float | Scaling factor for the layout algorithm. Defaults to 1. | 1 |
| colors | str or list | Color map or list of colors for nodes. Defaults to “viridis”. | 'viridis' |
| edge_colors | str or list | Color map or list of colors for edges. Defaults to “grey”. | 'grey' |
| preferred_label | str | Node attribute to use as the preferred label. Defaults to “symbol”. | 'symbol' |
| alternative_label | str | Node attribute to use as the alternative label. Defaults to “label”. | 'label' |
| font_size | int | Font size for labels. Defaults to 12. | 12 |
| legend | bool | Whether to draw the legend. Defaults to True. | True |
| edge_legend | bool | Whether to include edge types in the legend. Defaults to True. | True |
| ax | matplotlib.axes.Axes | Matplotlib axes object to draw the graph on. If None, a new figure is created. Defaults to None. | None |
| colorby | str | Node attribute to determine the node colors. Defaults to “category”. | 'category' |
| **kwargs | Any | Additional keyword arguments for node and edge drawing functions. | {} |
plot_tvbo_graph
plot.ontology.plot_tvbo_graph(g, ax=None, **kwargs)A function to plot a TVBO graph with various customizable parameters.
Parameters: g (networkx.Graph): The graph to be plotted. kwargs: Various other optional parameters to customize the plot.
Returns: None
relabel_graph
plot.ontology.relabel_graph(g, relabel)A function to relabel the nodes of the graph if a relabel dictionary is provided.
Parameters: g (networkx.Graph): The graph to be relabeled. relabel (dict): A dictionary with the relabeling information.
Returns: None
reverse_edges
plot.ontology.reverse_edges(pos)Reverse the coordinates of the positions in the pos dictionary.
Parameters:
pos : dict A dictionary with nodes as keys and (x, y) coordinates as values.
Returns:
dict A dictionary with nodes as keys and reversed (y, x) coordinates as values.
set_axis_limits
plot.ontology.set_axis_limits(pos, ax)Set the axis limits based on node positions.
Parameters:
pos : dict A dictionary with nodes as keys and positions as values. ax : matplotlib.axes.Axes The matplotlib axes object to set the limits on.
set_plt_params
plot.ontology.set_plt_params(rc_params=None)A function to set certain plt parameters.
Returns: None
validate_parameters
plot.ontology.validate_parameters(params=None)A function to validate and set default values for various parameters.
Parameters: params (dict): The parameters passed to the function.
Returns: dict: The validated and updated parameters.
