Noise & Stochastic Integration

Part of the running example, where stage 3 adds noise on one state variable.

Add stochastic noise to simulations for more realistic brain dynamics.

Adding Noise

from tvbo import Dynamics, SimulationExperiment, Noise

model = Dynamics.from_db("Generic2dOscillator")

# Deterministic
exp_det = SimulationExperiment(dynamics=model)
exp_det.integration.duration = 500
res_det = exp_det.run()

# Stochastic — add Gaussian noise
exp_noise = SimulationExperiment(dynamics=model)
exp_noise.integration.duration = 500
exp_noise.integration.noise = Noise(
    **{"noise_type": "gaussian", "parameters": {"sigma": {"value": 0.01}}}
)
res_noise = exp_noise.run()

* Owlready2 * Warning: ignoring cyclic subclass of/subproperty of, involving:
  http://uri.interlex.org/tgbugs/uris/readable/atlas/Space

INFO [tvbo.run] [+0s] STEP 1: Running simulation...
INFO [tvbo.run] [+0s]   Simulation period: 500.0 ms, dt: 0.01220703125 ms
INFO [tvbo.run] [+0s]   Simulation complete.
INFO [tvbo.run] [+0s] Experiment complete.
INFO [tvbo.run] [+0s] STEP 1: Running simulation...
INFO [tvbo.run] [+0s]   Simulation period: 500.0 ms, dt: 0.01220703125 ms
INFO [tvbo.run] [+0s]   Simulation complete.
INFO [tvbo.run] [+0s] Experiment complete.

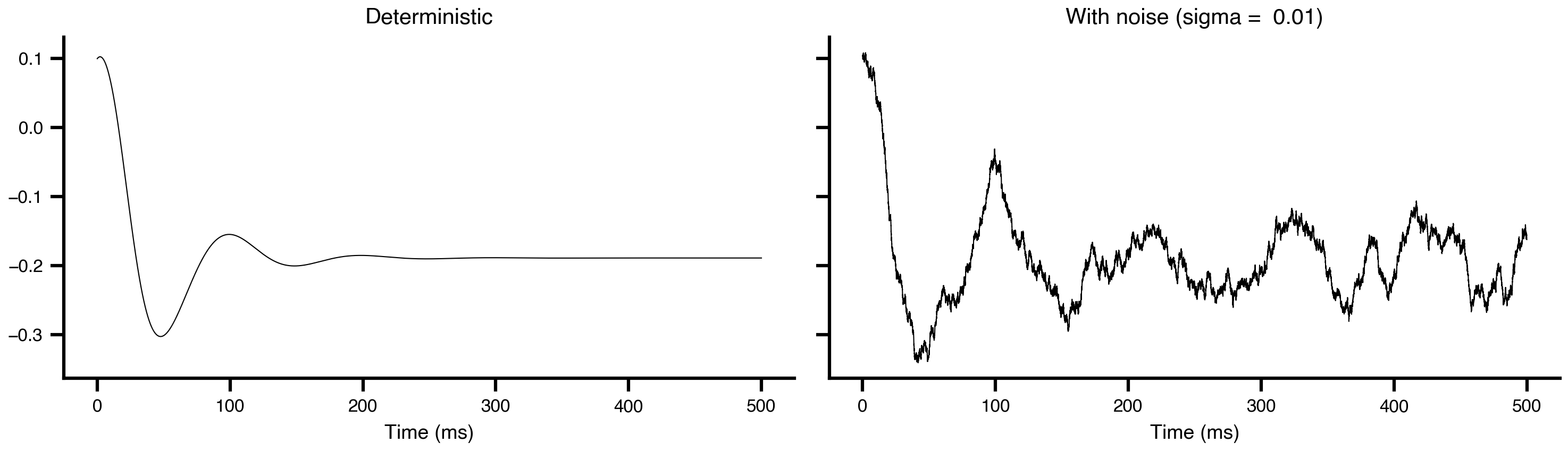

import matplotlib.pyplot as plt

fig, axes = plt.subplots(1, 2, figsize=(10, 3), sharey=True)
axes[0].plot(res_det.integration.time, res_det.integration.isel(variable=0).data.values, lw=0.5)
axes[0].set_title("Deterministic")
axes[1].plot(res_noise.integration.time, res_noise.integration.isel(variable=0).data.values, lw=0.5)
axes[1].set_title(
    f"With noise ({exp_noise.integration.noise.parameters['sigma'].name} =  {exp_noise.integration.noise.parameters['sigma'].value})"
)
for ax in axes:
    ax.set_xlabel("Time (ms)")
plt.tight_layout()
plt.show()

Noise Types

Type	`noise_type`	Description
Gaussian / White	`"gaussian"`	Independent samples at each time step
Ornstein-Uhlenbeck	`"ou"`	Temporally correlated (colored) noise

Ornstein-Uhlenbeck

integration:
    noise:
        noise_type: ou
        parameters:
            nsig: {value: 0.01}
            ntau: {value: 10.0}

The OU process has a time constant ntau controlling the autocorrelation.

Noise correlated across populations

Noise.covariance together with correlated_over makes the noise driving several populations share a common component, integrated by CorrelatedNoiseSolver. The construction is a linear mix of a shared source \(I_{CC}\) with an independent per-population source, not the variance-preserving rotation:

\[I^{f}_{A} = \rho\,I_{CC} + (1-\rho)\,I_{A}, \qquad I^{f}_{B} = \rho\,I_{CC} + (1-\rho)\,I_{B}\]

The distinction matters, because the two differ in what they hold fixed. Writing \(\sigma^2\) for each independent source’s variance:

	linear mix (used here)	rotation \(\xi_B = \rho\xi_A + \sqrt{1-\rho^2}\,\xi_I\)
differential noise \(\operatorname{Var}(I^{f}_A - I^{f}_B)\)	\((1-\rho)^2\,2\sigma^2\), falling monotonically in \(\rho\)	constant
per-population amplitude \(\operatorname{Var}(I^{f}_A)\)	\([\rho^2 + (1-\rho)^2]\,\sigma^2\), U-shaped with a minimum at \(\rho = 0.5\)	constant
realised A–B correlation	\(\rho^2/[\rho^2 + (1-\rho)^2]\)	\(\rho\)

So covariance sets the mixing weight, not the resulting correlation, and raising it reduces the differential drive between populations. Where a decision circuit’s accuracy rises with \(\rho\), that monotonic fall in differential noise is usually the cause.

YAML Specification

integration:
    method: heun
    step_size: 0.1
    duration: 5000
    noise:
        noise_type: gaussian
        parameters:
            nsig: {value: 0.015}

Key Parameters

Parameter	Description
`sigma`	Noise amplitude as a standard deviation \(\sigma\)
`nsig`	Noise amplitude as a dispersion \(D = \tfrac{1}{2}\sigma^{2}\) (TVB’s convention), so \(\sigma = \sqrt{2D}\)
`ntau`	OU time constant (only for `ou` type)

Give the amplitude either way — sigma when you have a standard deviation, nsig when you have a dispersion. Both are read by one shared reader, so a recipe means the same amplitude on every backend (tvboptim, Brian2, NetworkDynamics.jl, Julia). sigma wins if both are present.

intensity was removed in 1.0

The bare noise: {intensity: ...} slot is gone; the schema rejects it. It had meant a standard deviation, so declare parameters: {sigma: ...} — or parameters: {nsig: ...} if the value was a dispersion, which differs by \(\sqrt{2D}/D\).

# before                          # after
noise:                            noise:
    intensity: {value: 0.0316}        parameters:
                                          sigma: {value: 0.0316}

Note

Stochastic integration uses the Heun method (stochastic Heun-Euler). Set method: heun for best accuracy with noise.

Stochastic time-varying parameter inputs

Some models drive a parameter with a random process instead of (or in addition to) Wiener noise on the state. The classical example is Jansen-Rit’s p: an external pulse density resampled at every integration step from a uniform distribution. TVBO expresses this declaratively by attaching a distribution to the parameter with axis: time.

YAML schema

parameters:
  p:
    name: p
    value: 220                 # constant fallback used by non-stochastic backends
    unit: s^-1
    shape: "(n_nodes,)"        # optional; (n_nodes,) ⇒ per-node trajectory
    distribution:
      name: Uniform            # Uniform | Gaussian / Normal | TruncatedNormal
      domain: { lo: 120, hi: 320 }
      seed: 42                 # optional; defaults to 42
      axis: time               # ⇐ key: "Resample every integration timestep"

The axis: time value of SamplingAxis marks the parameter as a stochastic time-varying input (the alternative axis: space declares heterogeneous-by-node sampling, see Heterogeneous Node Dynamics).

What the tvboptim backend generates

For each axis: time parameter, the template emits:

A pre-generated trajectory of length \(\lceil t_1/\Delta t \rceil + 2\), sampled via jax.random.uniform / normal / truncated_normal and stored on state.dynamics._stoch_<name> once at the start of the run:
```
state.dynamics._stoch_p = jax.random.uniform(
    _subkey, (n_steps, n_nodes), minval=120.0, maxval=320.0
)
```
A per-step lookup inside dfun that reads the current sample by index:
```
p = params._stoch_p[jnp.int32(jnp.clip(t * inv_dt, 0, ...))]
```
A _freeze_step_time patch on the solver. Multi-stage methods (RK4, Heun) evaluate the dfun at sub-step times \(t,\, t + \Delta t/2,\, t + \Delta t\). The freeze ensures all sub-evaluations within one step read the same noise sample — the input is sampled once per integration step, not interpolated across sub-stages.

Distribution names and parameterisation

`name`	tvboptim sampler	Mapping from `domain`
`Uniform`	`jax.random.uniform`	`minval=lo, maxval=hi`
`Gaussian` / `Normal`	`jax.random.normal`	mean = `value`, std = `(hi - lo)/4`
`TruncatedNormal`	`jax.random.truncated_normal`	mean = `value`, std = `(hi - lo)/4`, clipped to `[lo, hi]`

For Gaussian/TruncatedNormal, the fallback value (used by non-stochastic backends and as the centre of the distribution) is the parameter’s value: field, not the domain midpoint.

Per-node vs scalar

The trajectory shape is determined by parameters.<name>.shape:

shape: "(n_nodes,)" ⇒ (n_steps, n_nodes): independent draw per node per step.
otherwise ⇒ (n_steps,) — one draw per step, broadcast to all nodes.

Reproducibility

The seed lives on the distribution itself (distribution.seed). The template wires it into jax.random.key(<seed>) at run time. Two runs with the same seed produce bit-identical trajectories on the same backend; seeds do not transfer between backends (tvboptim ↔︎ jax ↔︎ tvb use different RNGs).

Comparing to deterministic backends

Only tvboptim currently honours distribution: { axis: time }. The jax and tvb codegen treats the parameter as the constant value. To run a deterministic baseline across all three backends, replace the distribution with the domain midpoint as a constant:

for p in exp.dynamics.parameters.values():
    if p.distribution is not None:
        dom = p.distribution.domain
        p.value = (float(dom.lo) + float(dom.hi)) / 2.0
        p.distribution = None

This pattern, plus stripping integration.noise, gives bit-comparable output across backends — see Cross-Backend Numerical Parity.
