CO Oxidation on Catalyst Surface

Replicating BifurcationKit.jl COModel.jl example

Overview

This example replicates COModel.jl from BifurcationKit.jl, modeling catalytic CO oxidation on a platinum surface.

The model has three state variables: - x: CO surface coverage - y: O₂ surface coverage - s: Subsurface oxygen

A conservation law gives free sites: z = 1 − x − y − s

Model Definition (Inline YAML)

from tvbo import Dynamics

co_model_yaml = """
name: COOxidation
description: Catalytic CO oxidation on Pt surface

parameters:
    q1: {name: q1, value: 2.5, domain: {lo: 0, hi: 10}}
    q2: {name: q2, value: 2.0, domain: {lo: 0.5, hi: 5}}
    q3: {name: q3, value: 10.0, domain: {lo: 0, hi: 20}}
    q4: {name: q4, value: 0.0675, domain: {lo: 0, hi: 1}}
    q5: {name: q5, value: 1.0, domain: {lo: 0, hi: 5}}
    q6: {name: q6, value: 0.1, domain: {lo: 0, hi: 1}}
    k: {name: k, value: 0.4, domain: {lo: 0, hi: 3}}

derived_variables:
    z: {name: z, equation: {lhs: z, rhs: "1 - x - y - s"}}

state_variables:
    x:
        name: x
        initial_value: 0.001137
        equation: {lhs: "Derivative(x, t)", rhs: "2*q1*z**2 - 2*q5*x**2 - q3*x*y"}
    y:
        name: y
        initial_value: 0.891483
        equation: {lhs: "Derivative(y, t)", rhs: "q2*z - q6*y - q3*x*y"}
    s:
        name: s
        initial_value: 0.062345
        equation: {lhs: "Derivative(s, t)", rhs: "q4*(z - k*s)"}

number_of_modes: 1
"""

model = Dynamics.from_string(co_model_yaml)

Bifurcation Analysis

from tvbo.classes.continuation import Continuation

bifurcation_yaml = """
name: co_eq_in_q2
dynamics: COOxidation
free_parameters:
    - name: q2
      domain: {lo: "0.5", hi: "2.0"}
ds: 1.0e-4
ds_max: 0.015
n_inversion: 6
max_steps: 400
bothside: true
branches:
    - name: po_from_hopf
      source_point: "hopf:-1"
      delta_p: 0.00025
      bothside: true
      continuation:
          name: po_from_hopf_cont
          ds: 0.01
          ds_min: 1.0e-6
          ds_max: 0.05
          max_steps: 300
          newton_tol: 1.0e-9
          detect_bifurcation: 0
          options:
              - {name: tangent, value: Bordered}
      discretization:
          method: collocation
          parameters:
              - {name: mesh_intervals, value: 50}
              - {name: degree, value: 3}
              - {name: mesh_adaptation, value: true}
          options:
              - {name: jacobian, value: DenseAnalyticalInplace}
"""

cont = Continuation.from_string(bifurcation_yaml)
result = model.run('bifurcation-julia', continuation=cont)

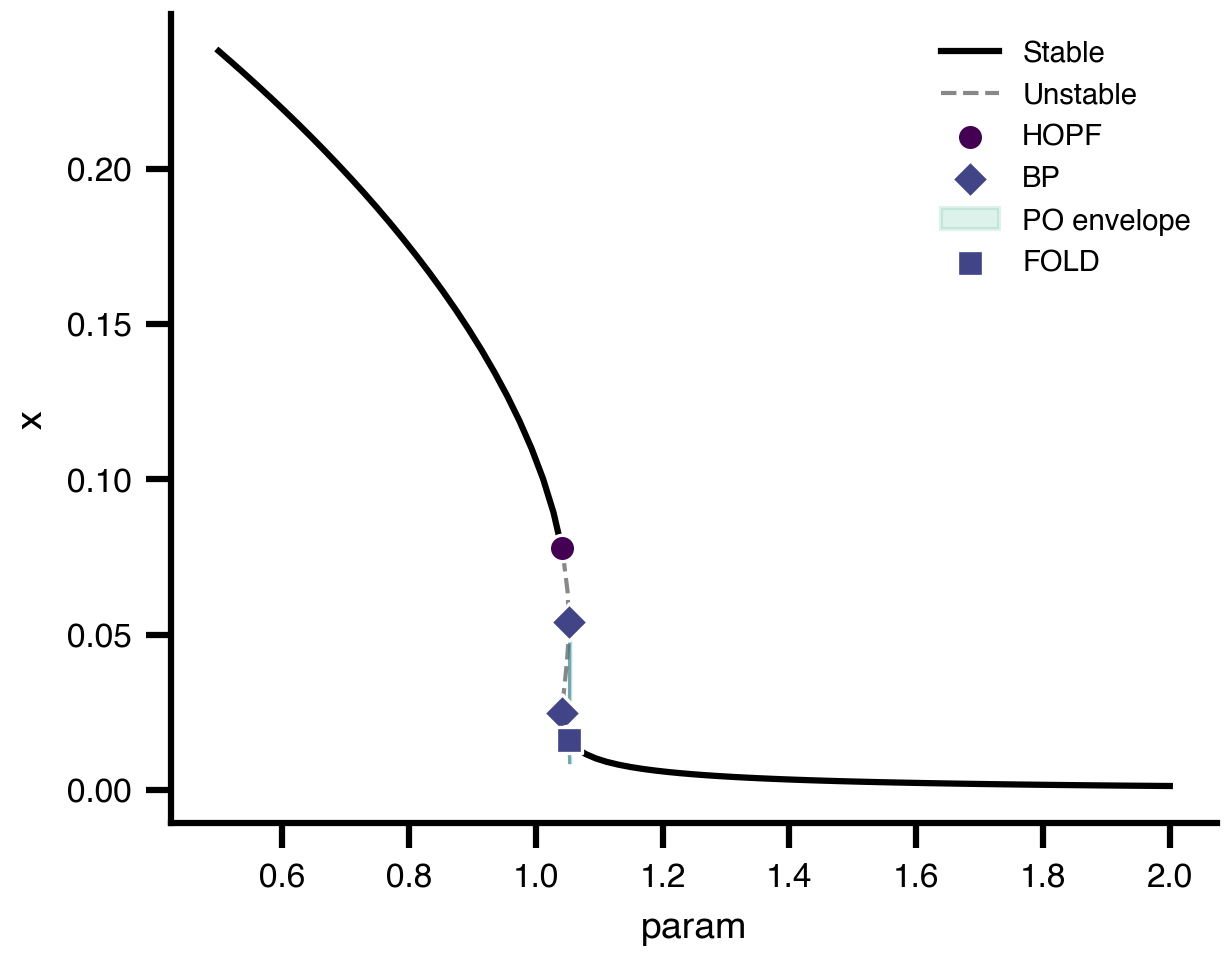

result.plot()

Detected IPython. Loading juliacall extension. See https://juliapy.github.io/PythonCall.jl/stable/compat/#IPython

┌ Error: Failure to converge with given tolerance = 1.0e-9.
│ Step = 6
│ You can decrease the tolerance or pass a different norm using the argument `normC`.
│ We reached the smallest value [dsmin] valid for ds, namely 1.0e-6.
│ Stopping continuation at continuation step 6.
└ @ BifurcationKit ~/.julia/packages/BifurcationKit/Y3DPO/src/continuation/Contbase.jl:73
