Heterogeneous Nodes

Different neural-mass models on one shared connectome: a single-scale network where only the dynamics vary from node to node.

2Specify·Networks & connectomes

Part of the running example, where stage 5 adds a connectome and a coupling function.

A heterogeneous network gives different nodes different dynamics while they share one connectome. Every node is a peer, with the same node-space, the same clock and one graph. Only the equations differ. Below, a slow Hopf oscillator drives a FitzHugh–Nagumo node and a Van der Pol node into opposite regimes on a three-node graph.

Heterogeneous is not multi-scale

Mixing neural-mass models never leaves the mean-field regime, and it does not nest one scale inside another. The test: if you can draw the model as one graph of peer nodes, it is heterogeneous and belongs here. If a node must contain a finer network, such as a spiking patch or reservoir with its own node-space and clock, that is multi-scale; see Multi-scale modelling.

from tvbo import Dynamics

# Slow Hopf oscillator - the DRIVER (~0.05 Hz period)
# Large amplitude, slow oscillation to clearly modulate other nodes
driver = Dynamics.from_string("""
name: SlowDriver
parameters:
  a:
    value: 0.5
  omega:
    value: 0.3
state_variables:
  x:
    equation:
      rhs: "a*x - omega*z - x*(x**2 + z**2) + c_in"
    initial_value: 1.0
  z:
    equation:
      rhs: "omega*x + a*z - z*(x**2 + z**2)"
    initial_value: 0.0
coupling_inputs:
  c_in: {}
""")

# FitzHugh-Nagumo in EXCITABLE regime
# Will fire bursts when driven by positive input from driver
fhn = Dynamics.from_string("""
name: Excitable
parameters:
  a:
    value: 0.7
  b:
    value: 0.8
  tau:
    value: 12.5
  I_ext:
    value: 0.3
state_variables:
  v:
    equation:
      rhs: "v - v**3/3 - w + I_ext + c_in"
    initial_value: -1.0
  w:
    equation:
      rhs: "(v + a - b*w)/tau"
    initial_value: -0.5
coupling_inputs:
  c_in: {}
""")

# Van der Pol as relaxation oscillator
# Receives INHIBITORY input - active when driver is LOW
vdp = Dynamics.from_string("""
name: Relaxation
parameters:
  mu:
    value: 2.0
state_variables:
  x:
    equation:
      rhs: "mu*(x - x**3/3 - w) + c_in"
    initial_value: -1.5
  w:
    equation:
      rhs: "x/mu"
    initial_value: 0.0
coupling_inputs:
  c_in: {}
""")

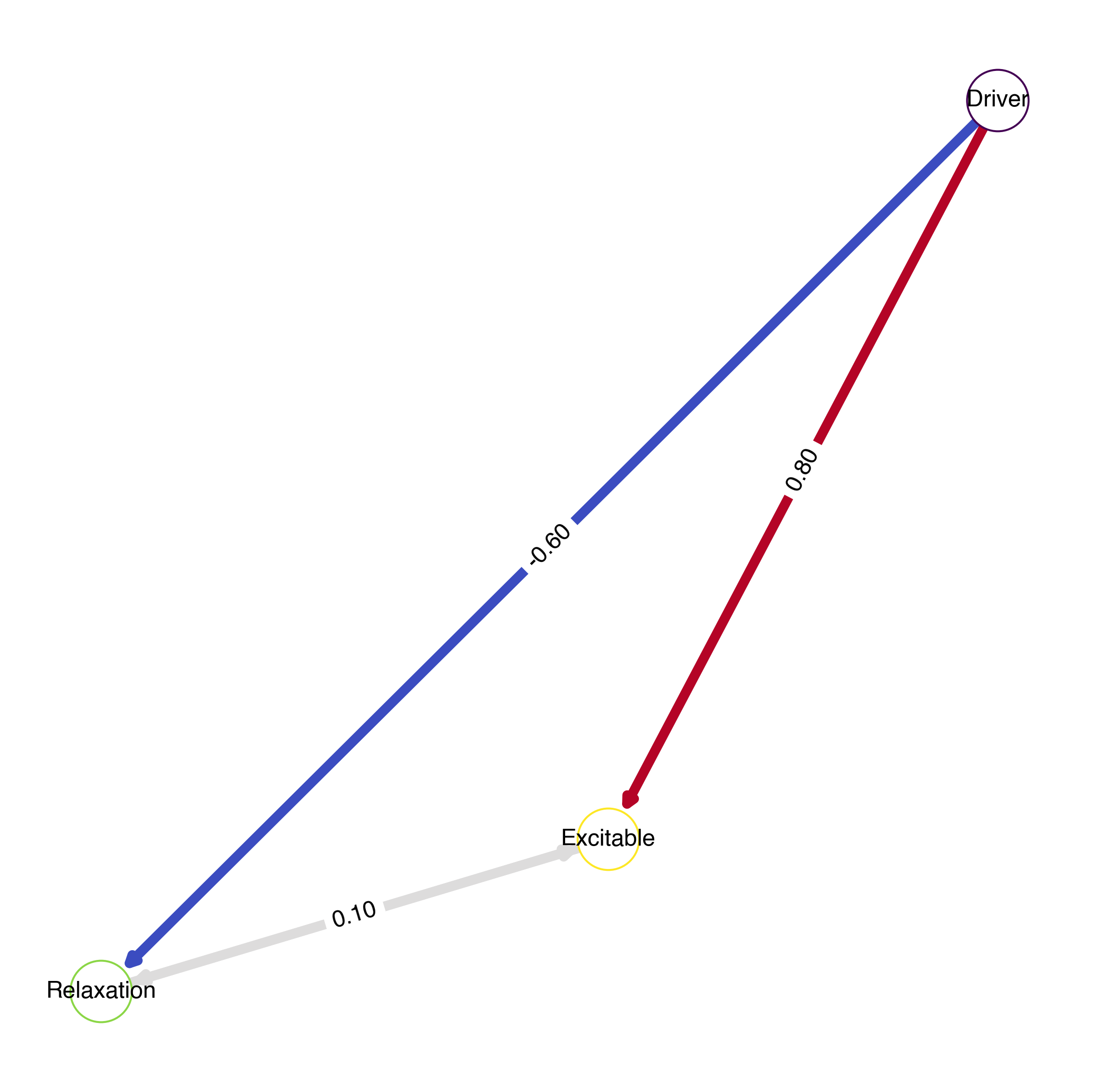

Network topology:

• Driver (node 0) sends POSITIVE coupling to Excitable (node 1)
• Driver (node 0) sends NEGATIVE coupling to Relaxation (node 2)
• This creates anti-phase modulation: when driver is UP, node 1 is excited, node 2 is suppressed

import yaml
from tvbo import SimulationExperiment
from tvbo import Network

network_yaml = """
label: HeterogeneousModulation
number_of_nodes: 3
nodes:
  - id: 0
    label: Driver
    dynamics: SlowDriver
  - id: 1
    label: Excitable
    dynamics: Excitable
  - id: 2
    label: Relaxation
    dynamics: Relaxation
edges:
  - source: 0
    target: 1
    parameters:
      weight:
        value: 0.8
    source_var: x_out
    target_var: c_in
    directed: true
  - source: 0
    target: 2
    parameters:
      weight:
        value: -0.6
    source_var: x_out
    target_var: c_in
    directed: true
  - source: 1
    target: 2
    parameters:
      weight:
        value: 0.1
    source_var: v_out
    target_var: c_in
    directed: true
  - source: 2
    target: 1
    parameters:
      weight:
        value: 0.1
    source_var: x_out
    target_var: c_in
    directed: true
"""

# Parse network from YAML
network = Network(**yaml.safe_load(network_yaml))

network.plot_graph(
    edge_cmap="coolwarm", edge_kwargs={"width": 5}, node_size=10)

network.dynamics["SlowDriver"] = driver
network.dynamics["Excitable"] = fhn
network.dynamics["Relaxation"] = vdp

# Create experiment with dynamics library and network
exp = SimulationExperiment(
    network=network,
)
exp.integration.duration = 300.0
exp.integration.step_size = 0.1

# Runs on the tvboptim JAX engine: nodes are partitioned into dynamics groups
# on one shared connectome, coupled through a single signal route.
res = exp.run("tvboptim")

* Owlready2 * Warning: ignoring cyclic subclass of/subproperty of, involving:
  http://uri.interlex.org/tgbugs/uris/readable/atlas/Space

/Users/leonmartin_bih/tools/tvbo/tvbo/adapters/tvboptim.py:505: UserWarning: Variable 'v' is unavailable in groups ['Relaxation', 'SlowDriver']; those groups were skipped and their graph nodes retain fill_value. Pass groups= explicitly to acknowledge partial coverage.
  first = np.asarray(sol.to_graph(var_order[0]))
/Users/leonmartin_bih/tools/tvbo/tvbo/adapters/tvboptim.py:510: UserWarning: Variable 'w' is unavailable in groups ['SlowDriver']; those groups were skipped and their graph nodes retain fill_value. Pass groups= explicitly to acknowledge partial coverage.
  data[:, k, :, 0] = np.asarray(sol.to_graph(v))
/Users/leonmartin_bih/tools/tvbo/tvbo/adapters/tvboptim.py:510: UserWarning: Variable 'x' is unavailable in groups ['Excitable']; those groups were skipped and their graph nodes retain fill_value. Pass groups= explicitly to acknowledge partial coverage.
  data[:, k, :, 0] = np.asarray(sol.to_graph(v))
/Users/leonmartin_bih/tools/tvbo/tvbo/adapters/tvboptim.py:510: UserWarning: Variable 'z' is unavailable in groups ['Excitable', 'Relaxation']; those groups were skipped and their graph nodes retain fill_value. Pass groups= explicitly to acknowledge partial coverage.
  data[:, k, :, 0] = np.asarray(sol.to_graph(v))

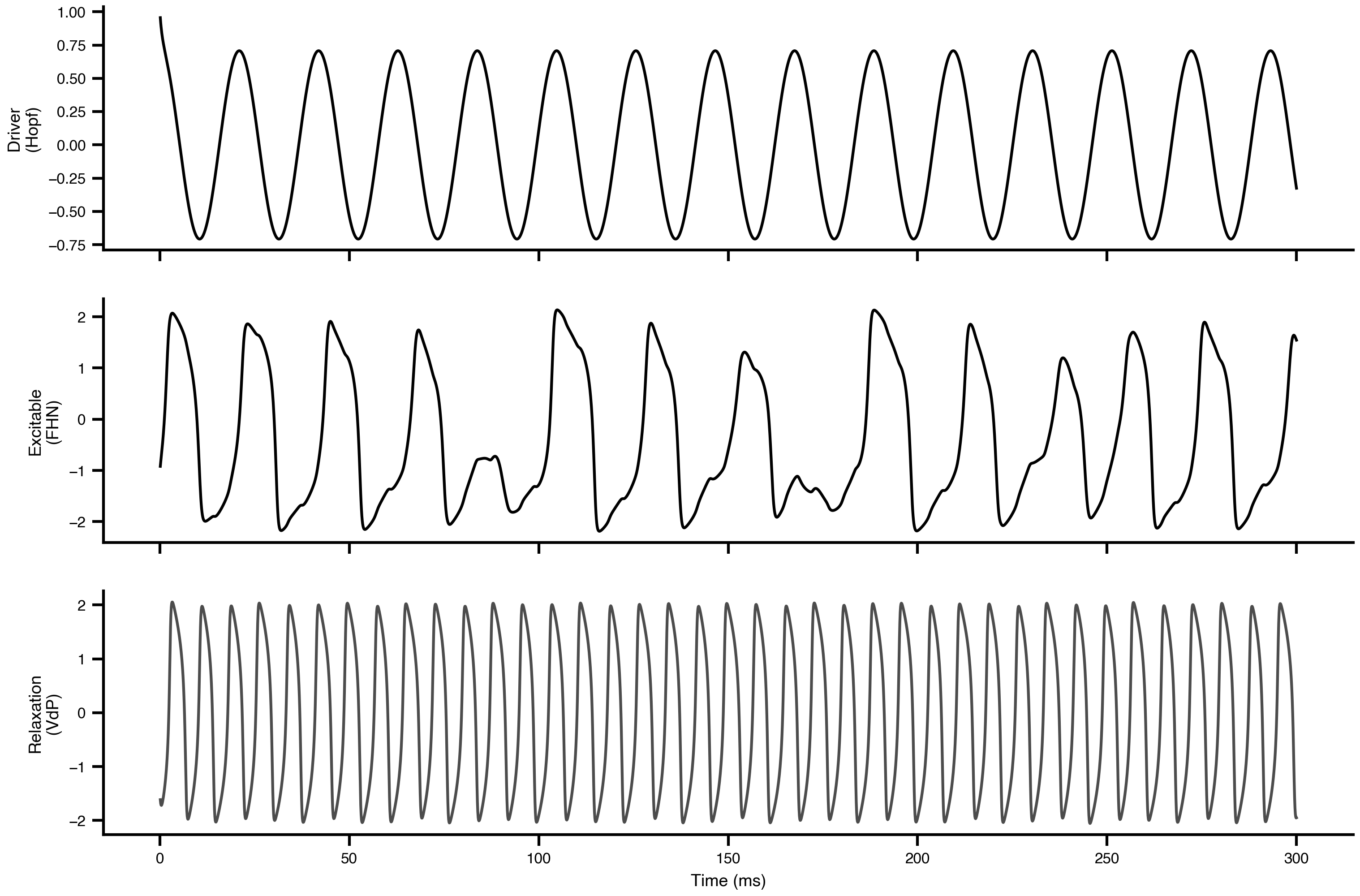

import matplotlib.pyplot as plt
import numpy as np

fig, axes = plt.subplots(3, 1, figsize=(12, 8), sharex=True)

t_tvbo = res.time

# Plot Driver (slow oscillation)
ax = axes[0]
# Overlay TVBO data with dashed line
driver_tvbo = res.get_region("Driver").get_state_variable("x")
ax.plot(
    t_tvbo,
    driver_tvbo.data.squeeze(),
)
ax.set_ylabel("Driver\n(Hopf)")

# Plot Excitable
ax = axes[1]
excitable_tvbo = res.get_region("Excitable").get_state_variable("v")
ax.plot(
    t_tvbo,
    excitable_tvbo.data.squeeze(),
)
ax.set_ylabel("Excitable\n(FHN)")

# Plot Relaxation
ax = axes[2]
relaxation_tvbo = res.get_region("Relaxation").get_state_variable("x")
ax.plot(
    t_tvbo,
    relaxation_tvbo.data.squeeze(),
    lw=1.5,
    alpha=0.7,
    label="TVBO TimeSeries",
)
ax.set_ylabel("Relaxation\n(VdP)")
ax.set_xlabel("Time (ms)")
plt.show()

Tip

To set per-node initial states (not just parameters), see Initial Conditions & Initial State. Node-level state: blocks let you set different starting values of each state variable per node, with optional random sampling via distributions.
