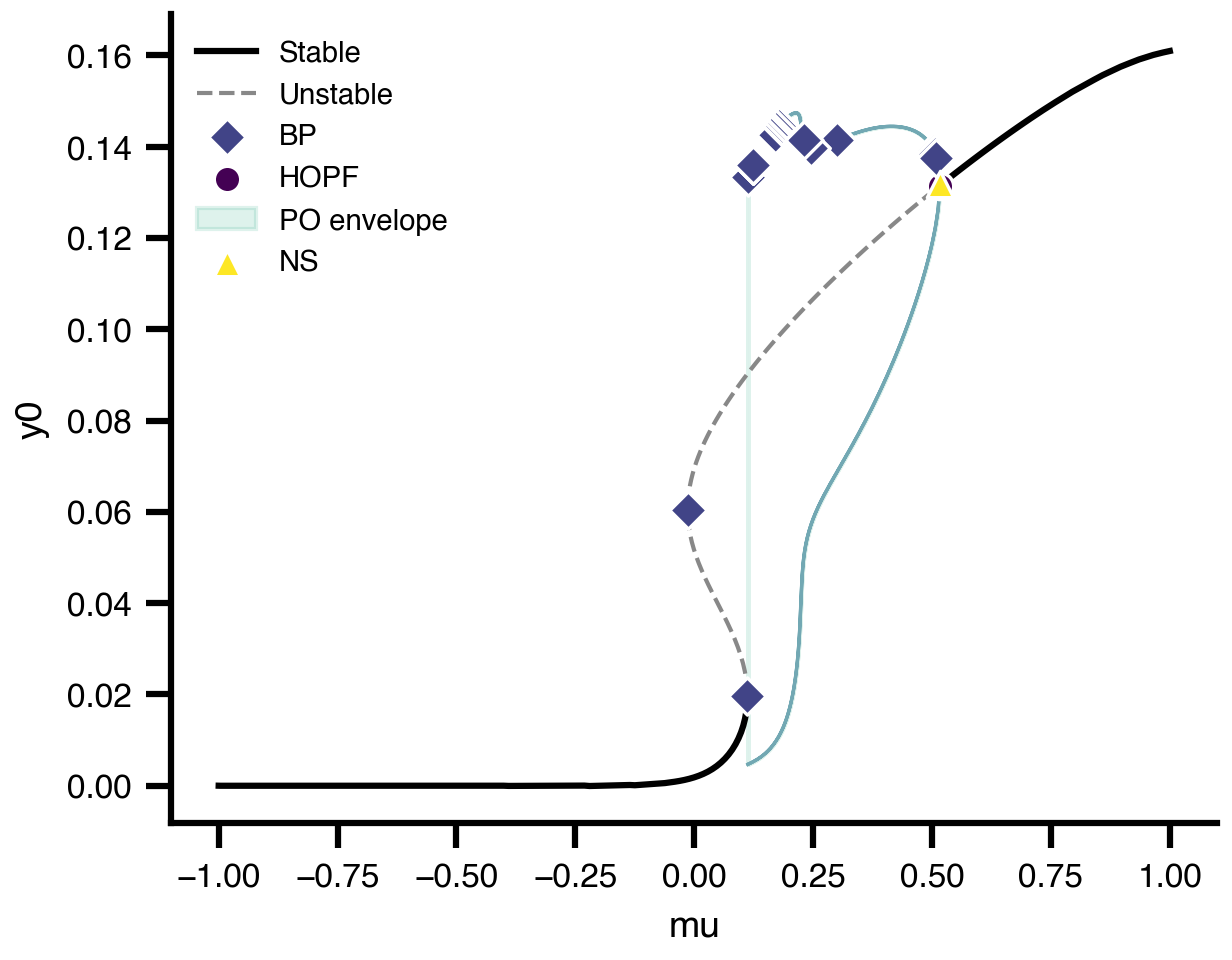

Bifurcation Analysis

Bifurcation analysis reveals how a system’s qualitative behavior changes as parameters vary — fixed points, oscillations, and transitions.

TVBO supports multiple backends for bifurcation analysis using the same Continuation specification:

• BifurcationKit.jl — Julia-based, via exp.run("bifurcationkit.jl")
• PyRates/PyCoBi — Python-based (AUTO-07p), via exp.run("pyrates-bifurcation")

Quick Start

from IPython.display import Markdown
from tvbo import Continuation, Dynamics, SimulationExperiment

try:
    from bsplot import style
    style.use('tvbo')
except ImportError:
    pass
model = Dynamics.from_ontology('Generic2dOscillator')
Markdown(model.generate_report())

Generic2dOscillator

The Generic 2-Dimensional Oscillator (G2D) is a phenomenological, coupled, nonlinear two-dimensional (i.e., two state-variables (‘V’, ‘W’)) oscillatory, neural mass model. The G2D is a generalization of the well-known FitzHugh-Nagumo model (FitzHugh, 1961; Nagumo et. al, 1962), adapted here for reproducing a wilder class of dynamical configurations of physiological phenomena as observed in neuronal population using phase-portrait method.

State Equations

\[ \dot{V} = d*\tau*\left(I*\gamma + V*g + V*c_{local} + W*\alpha + c_{glob}*\gamma + e*V^{2} - f*V^{3}\right) \] \[ \dot{W} = \frac{d*\left(a + V*b + c*V^{2} - W*\beta\right)}{\tau} \]

Parameters

Parameter	Value	Unit	Description
\(I\)	0.0	N/A	Baseline shift of the cubic nullcline
\(a\)	-2.0	N/A	Vertical shift of the configurable nullcline
\(\alpha\)	1.0	N/A	Constant parameter to scale the rate of feedback from the slow variable to the fast variable.
\(b\)	-10.0	N/A	Linear slope of the configurable nullcline
\(\beta\)	1.0	N/A	Constant parameter to scale the rate of feedback from the slow variable to itself
\(c\)	0.0	N/A	Parabolic term of the configurable nullcline
\(d\)	0.02	N/A	Temporal scale factor
\(e\)	3.0	N/A	Coefficient of the quadratic term of the cubic nullcline
\(f\)	1.0	N/A	Coefficient of the cubic term of the cubic nullcline
\(g\)	0.0	N/A	Coefficient of the linear term of the cubic nullcline
\(\gamma\)	1.0	N/A	Constant parameter to reproduce FHN dynamics where excitatory input currents are negative
\(\tau\)	1.0	N/A	A time-scale hierarchy can be introduced for the state variables :math:V and :math:W

References

FitzHugh, R. (1961). Impulses and physiological states in theoretical models of nerve membrane. Biophysical Journal, 1(6), 445-466.

Nagumo, J., Arimoto, S., & Yoshizawa, S. (1962). An active pulse transmission line simulating nerve axon. Proceedings of the IRE, 50(10), 2061-2070.

cont = Continuation.from_string(
    """\
name: eq_in_a
label: "Equilibrium branch in a"
description: >-
    Continue the equilibrium branch of the Generic2dOscillator as parameter a is varied. Detect Hopf bifurcations and continue periodic orbits from all Hopf points.

dynamics: Generic2dOscillator

free_parameters:
    - name: I
      domain:
          lo: "-10"
          hi: "20"

branches:
    - name: po_from_hopf
      source_point: "hopf:all"
"""
)

exp = SimulationExperiment(dynamics=model, continuations=[cont])

BifurcationKit.jl backend

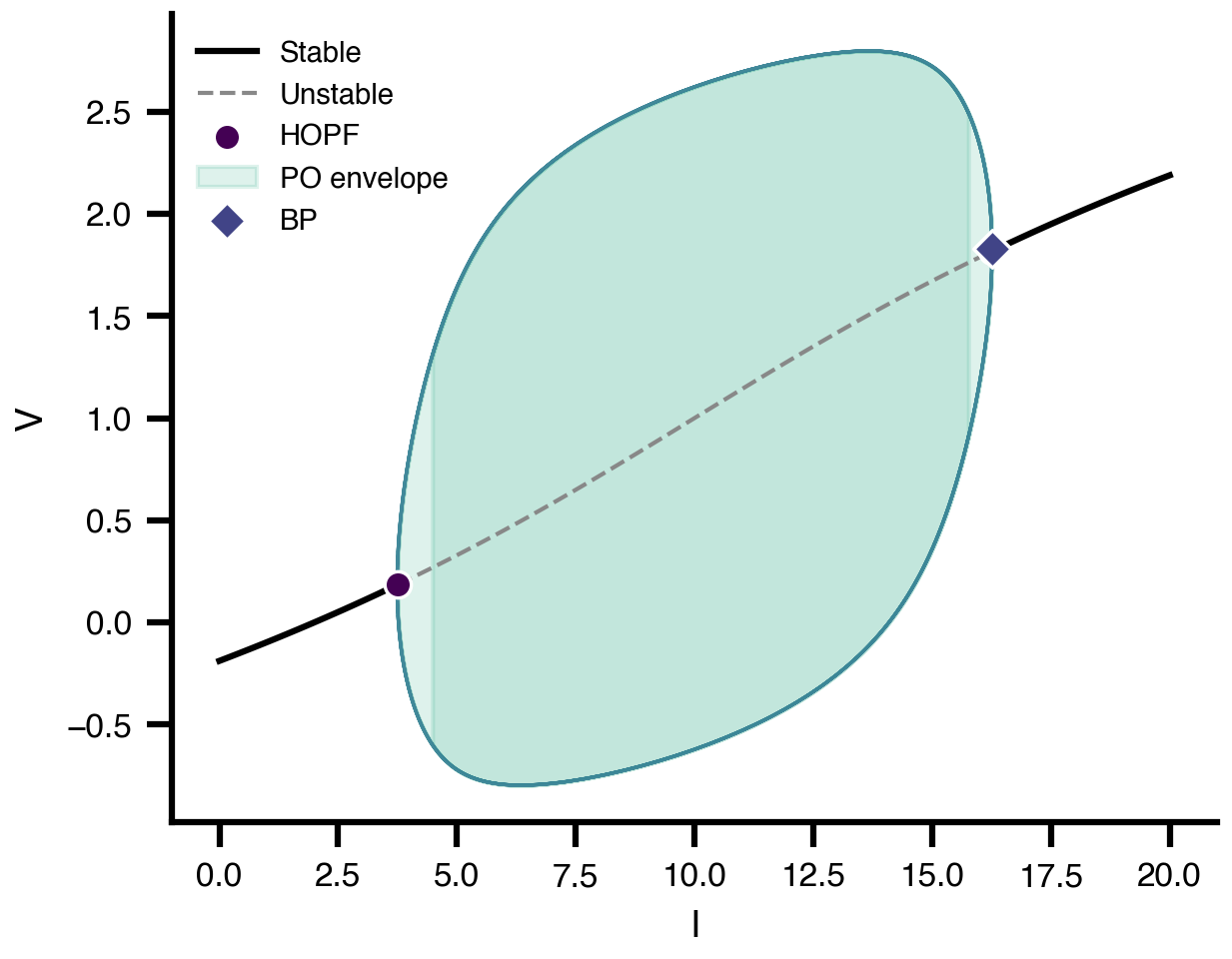

bif_result_jl = exp.run("bifurcationkit.jl")
bif_result_jl.plot(VOI='V')

Detected IPython. Loading juliacall extension. See https://juliapy.github.io/PythonCall.jl/stable/compat/#IPython

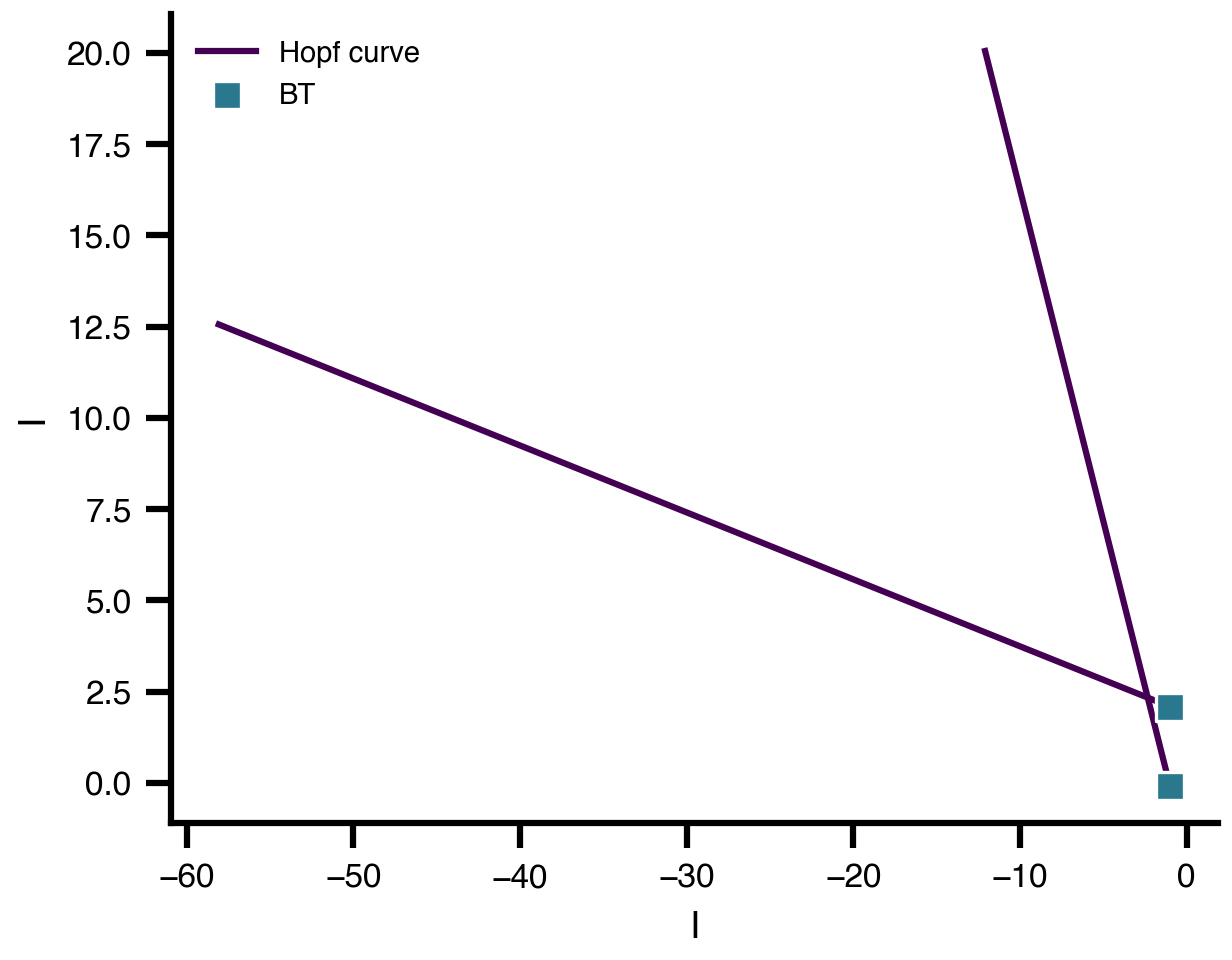

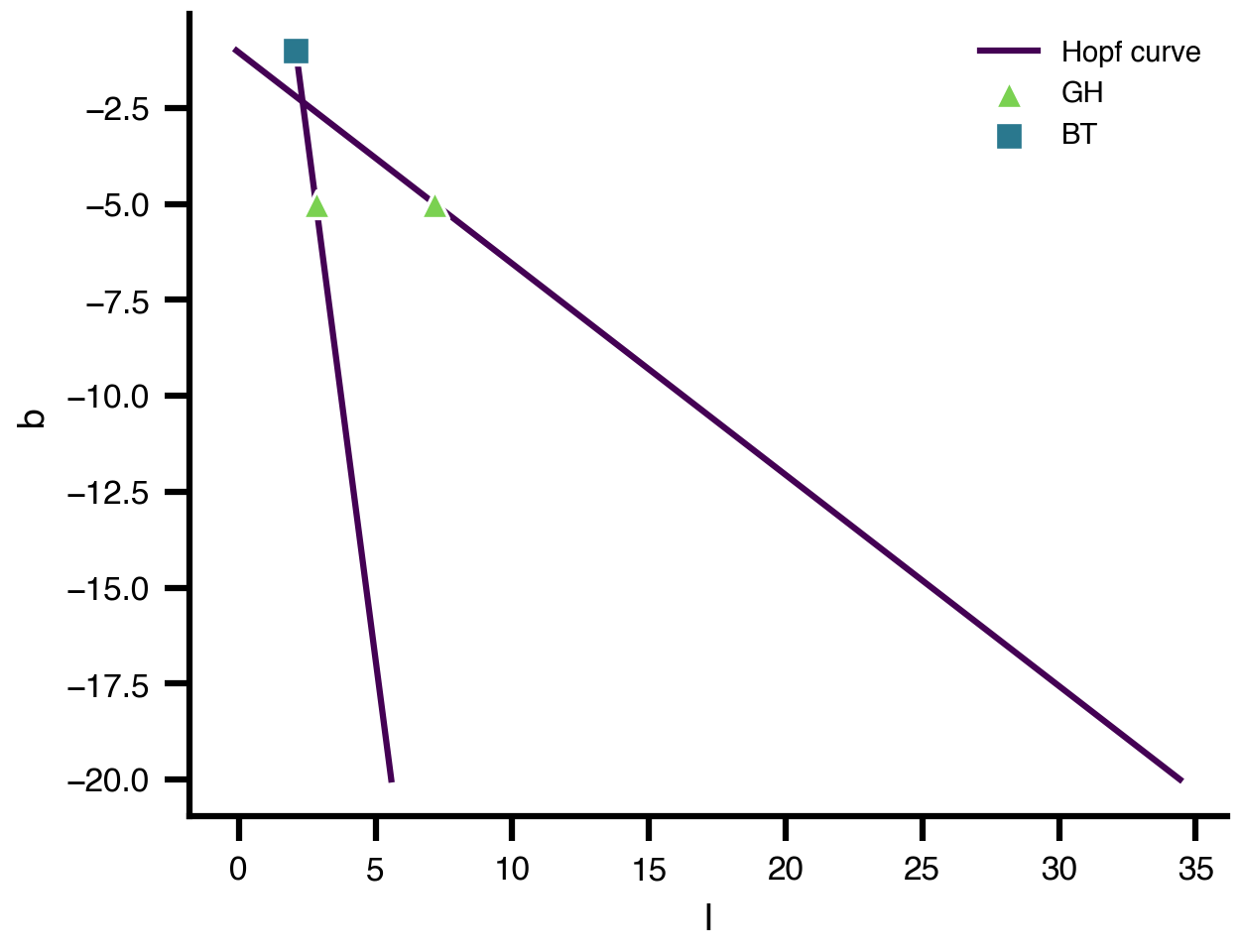

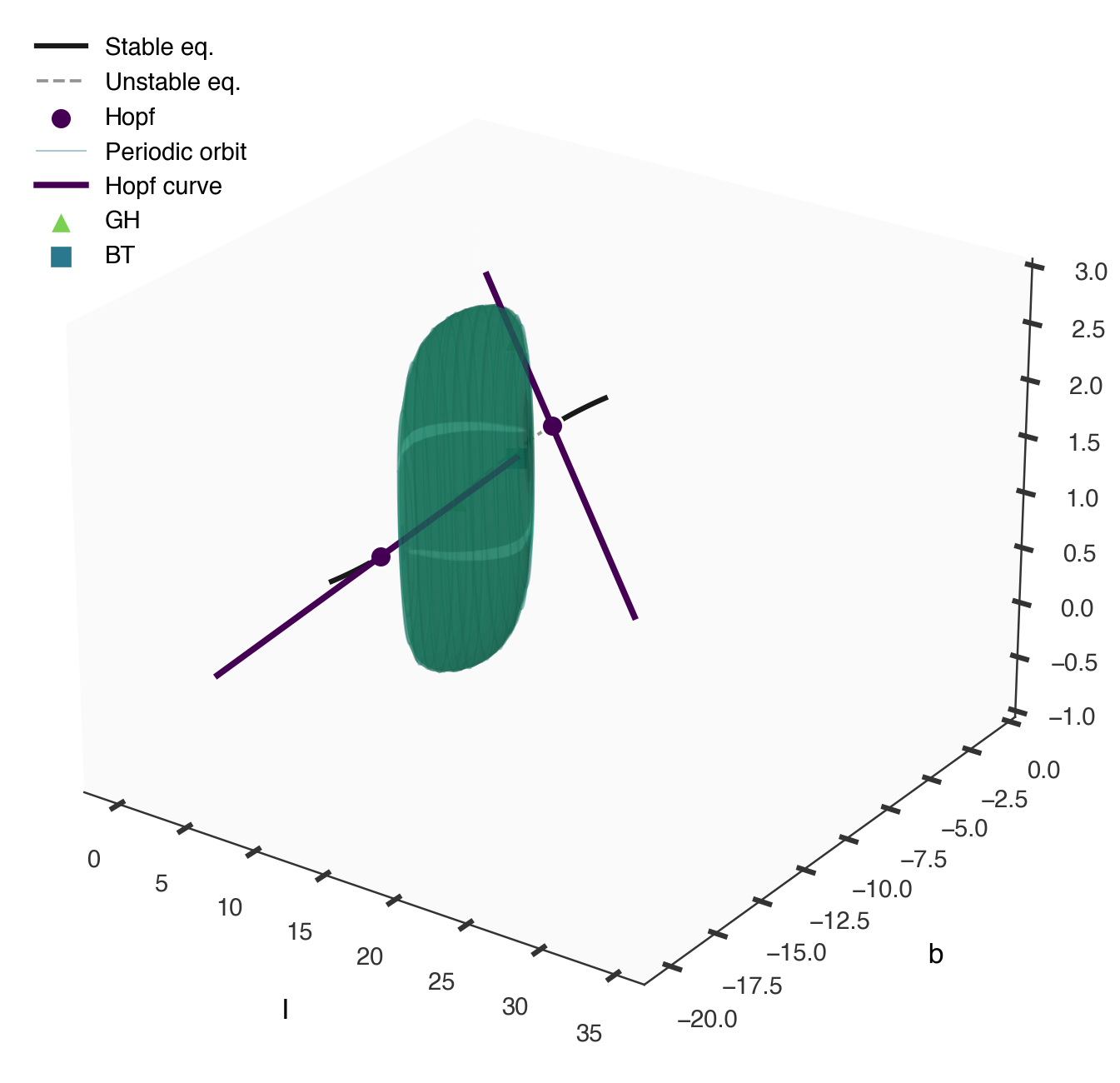

PyRates/PyCoBi backend (same specification!)

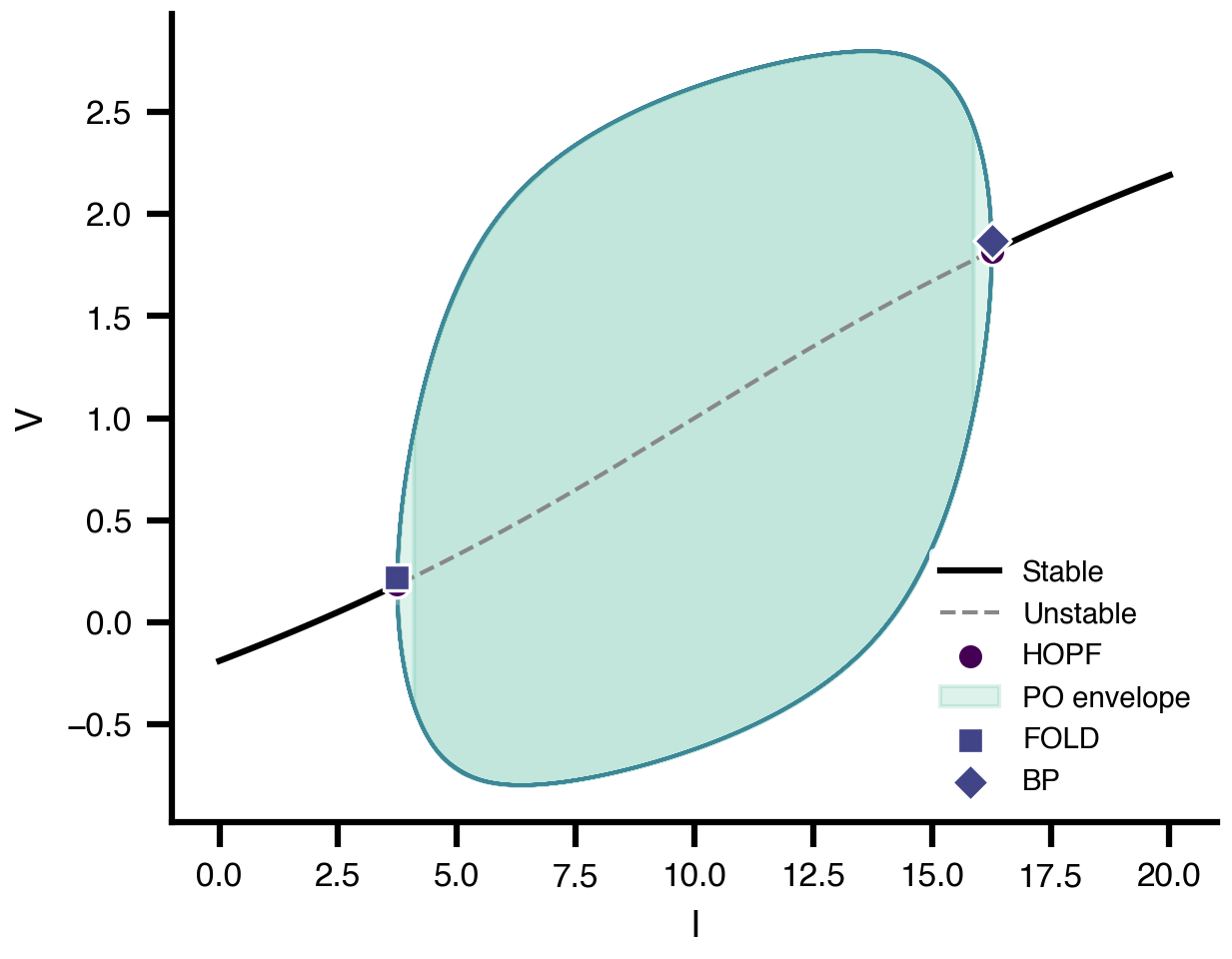

bif_result_py = exp.run("pyrates-bifurcation")
bif_result_py.plot(VOI='V')

Compilation Progress
--------------------
    (1) Translating the circuit template into a networkx graph representation...
        ...finished.
    (2) Preprocessing edge transmission operations...
        ...finished.
    (3) Parsing the model equations into a compute graph...
        ...finished.
    Model compilation was finished.

-------------------------------------------------------------
Could not import plotting modules, plotting will be disabled.
This is probably because Tkinter is not enabled in your Python installation.
-------------------------------------------------------------

gfortran -g -fopenmp -O -c tvbo_bif.f90 -o tvbo_bif.o
gfortran -g -fopenmp -O tvbo_bif.o -o tvbo_bif.exe /Applications/auto-07p/lib/*.o
Starting tvbo_bif ...
