Ex2: Izhikevich

Izhikevich 2003 spiking neuron — tonic, bursting, mixed, and class-1 modes

Model: Izhikevich 2003

The Izhikevich (2003) model is a computationally efficient spiking neuron:

\[\frac{dv}{dt} = 0.04\,v^2 + 5\,v + 140 - U + I_{\text{ext}}\] \[\frac{dU}{dt} = a\,(b\,v - U)\]

Spike event: if \(v > \text{thresh}\), then \(v \leftarrow c\), \(U \leftarrow U + d\).

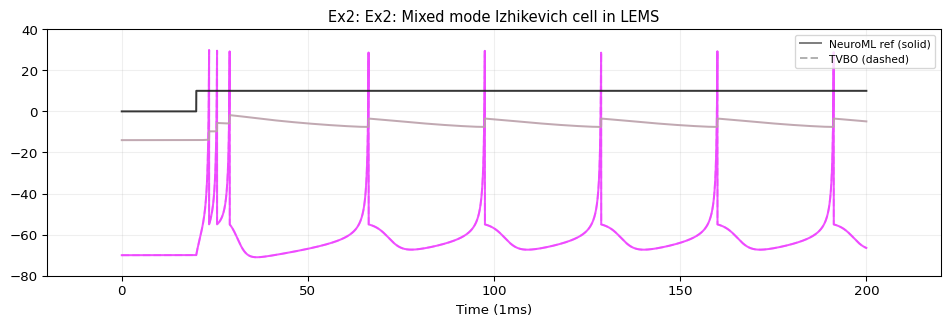

Different parameter sets produce tonic (a=0.02, b=0.2, c=-65, d=6), bursting (c=-50, d=2), mixed (c=-55, d=4), and class-1 (b=-0.1, c=-55, d=6) modes.

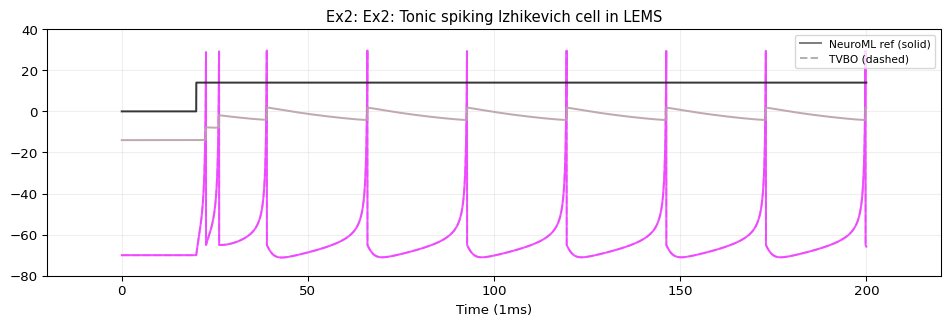

1. Tonic Spiking

from tvbo import SimulationExperiment

exp_tonic = SimulationExperiment.from_string("""
label: "NeuroML Ex2: Izhikevich (tonic)"
dynamics:
  name: IzhikevichCell
  parameters:
    a:      { value: 0.02 }
    b:      { value: 0.2 }
    c:      { value: -65.0 }
    d:      { value: 6.0 }
    thresh: { value: 30.0 }
    I_amp:  { value: 14.0 }
    pulse_delay:    { value: 20.0, unit: ms }
    pulse_duration: { value: 2000.0, unit: ms }
  derived_variables:
    I_ext:
      equation:
        rhs: "Piecewise((I_amp, (t >= pulse_delay) & (t < pulse_delay + pulse_duration)), (0.0, True))"
  state_variables:
    v:
      equation: { rhs: "0.04*v**2 + 5*v + 140 - U + I_ext" }
      initial_value: -70.0
      variable_of_interest: true
    U:
      equation: { rhs: "a*(b*v - U)" }
      initial_value: -14.0
  events:
    spike:
      condition: { rhs: "v > thresh" }
      affect:    { rhs: "v = c; U = U + d" }
network:
  number_of_nodes: 1
integration:
  method: euler
  step_size: 0.005
  duration: 200.0
  time_scale: ms
""")
print(f"Model: {exp_tonic.dynamics.name}")
print(f"Events: {list(exp_tonic.dynamics.events.keys())}")
Model: IzhikevichCell
Events: ['spike']

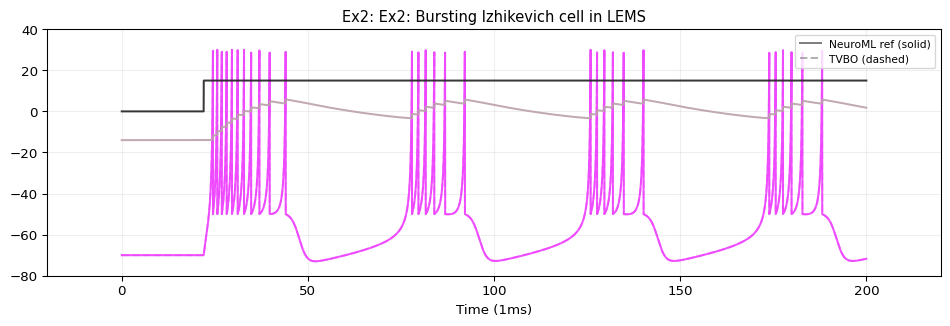

2. Bursting

exp_burst = SimulationExperiment.from_string("""
label: "NeuroML Ex2: Izhikevich (bursting)"
dynamics:
  name: IzhikevichBurst
  parameters:
    a:      { value: 0.02 }
    b:      { value: 0.2 }
    c:      { value: -50.0 }
    d:      { value: 2.0 }
    thresh: { value: 30.0 }
    I_amp:  { value: 15.0 }
    pulse_delay:    { value: 22.0, unit: ms }
    pulse_duration: { value: 2000.0, unit: ms }
  derived_variables:
    I_ext:
      equation:
        rhs: "Piecewise((I_amp, (t >= pulse_delay) & (t < pulse_delay + pulse_duration)), (0.0, True))"
  state_variables:
    v:
      equation: { rhs: "0.04*v**2 + 5*v + 140 - U + I_ext" }
      initial_value: -70.0
      variable_of_interest: true
    U:
      equation: { rhs: "a*(b*v - U)" }
      initial_value: -14.0
  events:
    spike:
      condition: { rhs: "v > thresh" }
      affect:    { rhs: "v = c; U = U + d" }
network:
  number_of_nodes: 1
integration:
  method: euler
  step_size: 0.005
  duration: 200.0
  time_scale: ms
""")

3. Render LEMS XML (tonic variant)

xml = exp_tonic.render("lems")
print(xml[:1500])

<Lems>

  <!-- Tell jLEMS/jNeuroML which component is the simulation entry point. -->
  <Target component="sim_NeuroML_Ex2__Izhikevich__tonic_"/>

  <!-- ════════════════════════════════════════════════════════════════
       Dimensions & Units (inline — no external includes needed)
       ════════════════════════════════════════════════════════════════ -->

  <!-- Dimensions -->
  <Dimension name="none"/>
  <Dimension name="time" t="1"/>
  <Dimension name="voltage" m="1" l="2" t="-3" i="-1"/>
  <Dimension name="per_time" t="-1"/>
  <Dimension name="conductance" m="-1" l="-2" t="3" i="2"/>
  <Dimension name="capacitance" m="-1" l="-2" t="4" i="2"/>
  <Dimension name="current" i="1"/>
  <Dimension name="resistance" m="1" l="2" t="-3" i="-2"/>
  <Dimension name="concentration" l="-3" n="1"/>
  <Dimension name="substance" n="1"/>
  <Dimension name="charge" t="1" i="1"/>
  <Dimension name="temperature" k="1"/>

  <!-- Units -->
  <Unit symbol="s" dimension="time" power="0"/>
  <Unit symbol="ms" dimension="time" power="-3"/>
  <Unit symbol="us" dimension="time" power="-6"/>
  <Unit symbol="V" dimension="voltage" power="0"/>
  <Unit symbol="mV" dimension="voltage" power="-3"/>
  <Unit symbol="A" dimension="current" power="0"/>
  <Unit symbol="mA" dimension="current" power="-3"/>
  <Unit symbol="nA" dimension="current" power="-9"/>
  <Unit symbol="pA" dimension="current" power="-12"/>
  <Unit symbol="S" dimension="conductance" power="0"/>
  <Unit symbol="mS" dimension="conductance"

4. Run Reference (NeuroML2)

import sys, os
sys.path.insert(0, os.path.dirname(os.path.abspath(".")))
from _nml_helpers import run_lems_example

ref_outputs = run_lems_example("LEMS_NML2_Ex2_Izh.xml")
for name, arr in ref_outputs.items():
    print(f"  {name}: shape={arr.shape}")
  auto.dat: shape=(40001, 10)

5. Run TVBO Versions

import numpy as np

def extract_array(exp):
    da = exp.run("neuroml").integration.data
    return np.column_stack([da.coords['time'].values, da.values])

tvbo_tonic = extract_array(exp_tonic)
tvbo_burst = extract_array(exp_burst)
print(f"Tonic: shape={tvbo_tonic.shape}")
print(f"Burst: shape={tvbo_burst.shape}")
Tonic: shape=(40001, 3)
Burst: shape=(40001, 3)

6. Numerical Comparison

The NeuroML example outputs multiple cells (izBurst, izTonic, izMixed, izClass1). We compare the tonic variant:

from _nml_helpers import compare_traces
import numpy as np

ref_arr = list(ref_outputs.values())[0]
# NeuroML output: time, izBurst/v, izTonic/v, izMixed/v, izClass1/v + U columns
# We need to identify which columns are which from the file structure
print(f"Reference columns: {ref_arr.shape[1]}")

# The tonic cell is typically column 2 (izTonic/v)
# Compare tonic v
ref_tonic = ref_arr[:, [0, 2]]  # time + izTonic/v
compare_traces(
    ref_tonic, tvbo_tonic,
    ref_cols=['time', 'v'], tvbo_cols=['time', 'v'],
)
Reference columns: 10
  v: RMSE=4.284388  max_err=9.930559  corr=0.798475  ⚠️
{'v': {'rmse': np.float64(4.284388073698083),
  'max_err': np.float64(9.9305587),
  'corr': np.float64(0.7984746976731699),
  'close': False}}

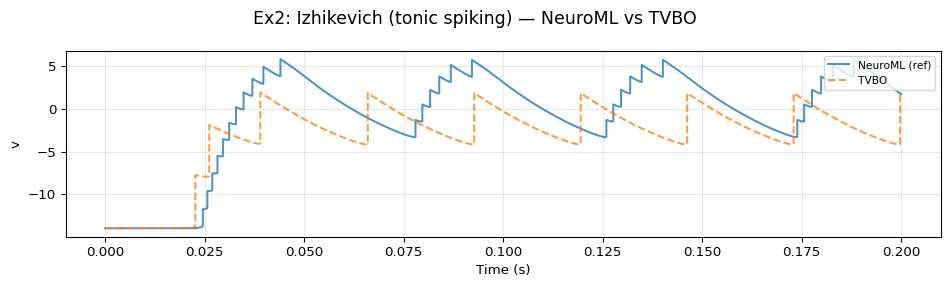

7. Plot

from _nml_helpers import plot_comparison

plot_comparison(
    ref_tonic, tvbo_tonic,
    ref_cols=['time', 'v'], tvbo_cols=['time', 'v'],
    title="Ex2: Izhikevich (tonic spiking) — NeuroML vs TVBO",
    time_scale=1.0, time_unit="s",
)

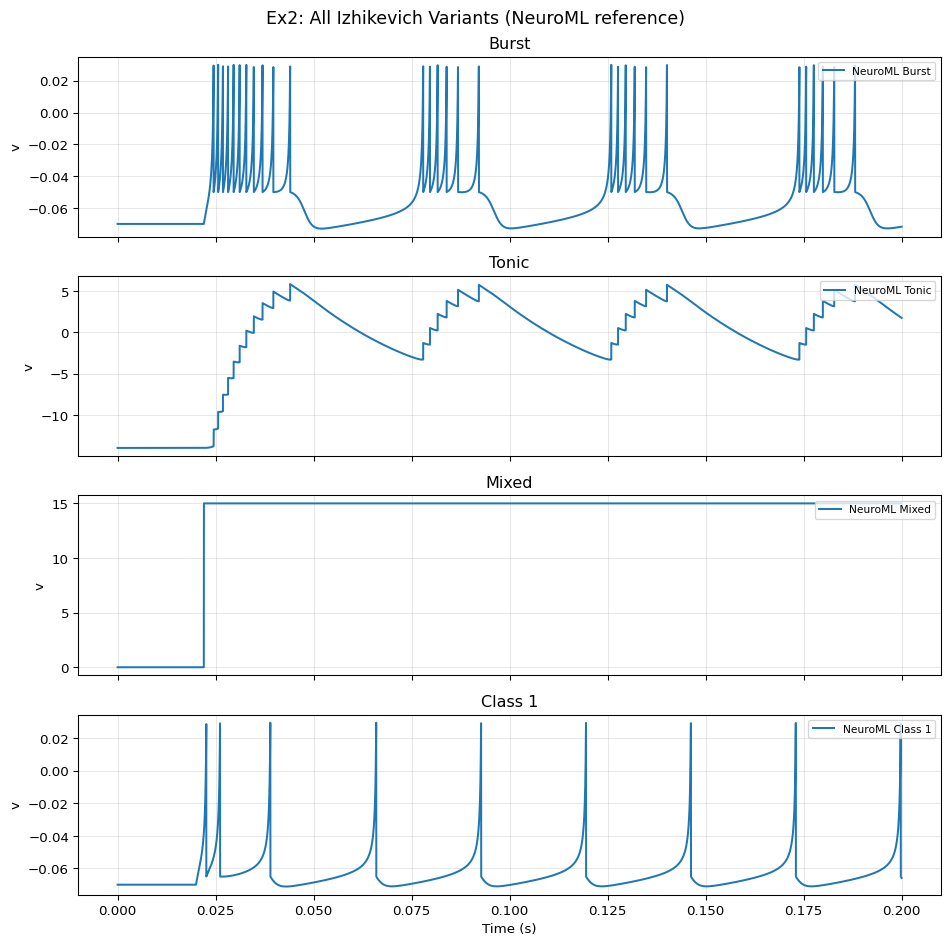

All Four Variants from NeuroML

import matplotlib.pyplot as plt

fig, axes = plt.subplots(4, 1, figsize=(10, 10), sharex=True)
labels = ['Burst', 'Tonic', 'Mixed', 'Class 1']
t_ref = ref_arr[:, 0]
for i in range(4):
    axes[i].plot(t_ref, ref_arr[:, i+1], label=f'NeuroML {labels[i]}')
    axes[i].set_ylabel('v')
    axes[i].set_title(labels[i])
    axes[i].legend(loc='upper right', fontsize=8)
    axes[i].grid(True, alpha=0.3)
axes[-1].set_xlabel("Time (s)")
fig.suptitle("Ex2: All Izhikevich Variants (NeuroML reference)", fontsize=13)
fig.tight_layout()
plt.show()
