NML2: Abstract Cells

Catalog of all abstract cell types — iafTau, iafRef, Izh, AdEx, FHN, PinskyRinzel

NML2_AbstractCells.nml

This is the master catalog of all abstract (non-morphological) cell types in NeuroML2. Each cell type is a single-compartment model with analytically defined dynamics.

Cell Type TVBO Equivalent State Vars
iafTauCell IntegrateAndFire (Ex0) 1 (v)
iafTauRefCell IaF + refractory 2 (v, lastSpikeTime)
iafCell IaF (conductance-based) 1 (v)
iafRefCell IaF + refractory 2
izhikevichCell IzhikevichCell (Ex2) 2 (v, U)
izhikevich2007Cell Izhikevich2007 2 (v, u)
adExIaFCell AdaptiveExponentialIF (Ex8) 2 (v, w)
fitzHughNagumoCell FitzHughNagumo (Ex9) 2 (V, W)
fitzHughNagumo1969Cell FHN1969 2 (V, W)
pinskyRinzelCA3Cell PinskyRinzel (Ex22) 10

Show Original NML File Structure

from pathlib import Path

nml_file = Path.home() / "work_data/toolboxes/NeuroML2/examples/NML2_AbstractCells.nml"
text = nml_file.read_text()

# Show component declarations
for line in text.split('\n'):
    stripped = line.strip()
    if stripped.startswith('<iaf') or stripped.startswith('<izh') or \
       stripped.startswith('<adEx') or stripped.startswith('<fitz') or \
       stripped.startswith('<pinsky'):
        print(stripped[:120])
<iafTauCell id="iafTau" leakReversal="-50mV" thresh="-55mV"
<iafTauRefCell id="iafTauRef" leakReversal="-50mV" thresh="-55mV"
<iafCell id="iaf" leakReversal="-50mV" thresh="-55mV"
<iafRefCell id="iafRef" leakReversal="-50mV" thresh="-55mV"
<izhikevichCell id="izBurst" v0 = "-70mV" thresh = "30mV" a="0.02"
<izhikevich2007Cell id="iz2007RS" v0 = "-60mV" C="100 pF" k = "0.7 nS_per_mV"
<adExIaFCell id="adExBurst" C="281pF" gL="30nS" EL="-70.6mV"
<fitzHughNagumoCell id="fn1" I="0.8" />
<fitzHughNagumo1969Cell id="fn1969" a="0.7" b="0.08" I="1.0" phi="0.08" V0="0.0" W0="0.0"/>
<pinskyRinzelCA3Cell id="pr2A" iSoma="0.75 uA_per_cm2" iDend="0 uA_per_cm2" gc="2.1 mS_per_cm2" qd0="0"

Define All Cells in TVBO

FitzHugh-Nagumo 1969

from tvbo import SimulationExperiment

exp_fn1969 = SimulationExperiment.from_string("""
label: "NML2 AbstractCells: FitzHugh-Nagumo 1969"
dynamics:
  name: FitzHughNagumo1969
  parameters:
    a:   { value: 0.7 }
    b:   { value: 0.08 }
    I:   { value: 1.0 }
    phi: { value: 0.08 }
  state_variables:
    V:
      equation: { rhs: "V - V**3/3 - W + I" }
      initial_value: 0.0
      variable_of_interest: true
    W:
      equation: { rhs: "phi*(V + a - b*W)" }
      initial_value: 0.0
network:
  number_of_nodes: 1
integration:
  method: euler
  step_size: 0.01
  duration: 200.0
  time_scale: ms
""")
print(f"FHN1969 model defined: {exp_fn1969.dynamics.name}")
FHN1969 model defined: FitzHughNagumo1969

Izhikevich 2007

exp_iz2007 = SimulationExperiment.from_string("""
label: "NML2 AbstractCells: Izhikevich 2007"
dynamics:
  name: Izhikevich2007
  description: "Izhikevich 2007 model"
  parameters:
    C:      { value: 100.0,  description: "Capacitance (pF)" }
    k:      { value: 0.7,    description: "nS/mV" }
    vr:     { value: -60.0,  description: "Resting potential (mV)" }
    vt:     { value: -40.0,  description: "Instantaneous threshold (mV)" }
    vpeak:  { value: 35.0,   description: "Spike cutoff (mV)" }
    a:      { value: 0.03,   description: "Recovery rate (1/ms)" }
    b:      { value: -2.0,   description: "Recovery sensitivity (nS)" }
    c:      { value: -50.0,  description: "Reset potential (mV)" }
    d:      { value: 100.0,  description: "Recovery reset (pA)" }
  state_variables:
    v:
      equation: { rhs: "(k*(v - vr)*(v - vt) - u) / C" }
      initial_value: -60.0
      variable_of_interest: true
    u:
      equation: { rhs: "a*(b*(v - vr) - u)" }
      initial_value: 0.0
  events:
    spike:
      condition: { rhs: "v > vpeak" }
      affect:    { rhs: "v = c; u = u + d" }
network:
  number_of_nodes: 1
integration:
  method: euler
  step_size: 0.005
  duration: 200.0
  time_scale: ms
""")
print(f"Iz2007 model defined: {exp_iz2007.dynamics.name}")
Iz2007 model defined: Izhikevich2007

Render and Inspect LEMS

# Show FHN1969 LEMS
xml = exp_fn1969.render("lems")
print("=== FHN1969 LEMS (excerpt) ===")
print(xml[:1200])
=== FHN1969 LEMS (excerpt) ===

<Lems>

  <!-- Tell jLEMS/jNeuroML which component is the simulation entry point. -->
  <Target component="sim_NML2_AbstractCells__FitzHugh_Nagumo_1969"/>

  <!-- ════════════════════════════════════════════════════════════════
       Dimensions & Units (inline — no external includes needed)
       ════════════════════════════════════════════════════════════════ -->

  <!-- Dimensions -->
  <Dimension name="none"/>
  <Dimension name="time" t="1"/>
  <Dimension name="voltage" m="1" l="2" t="-3" i="-1"/>
  <Dimension name="per_time" t="-1"/>
  <Dimension name="conductance" m="-1" l="-2" t="3" i="2"/>
  <Dimension name="capacitance" m="-1" l="-2" t="4" i="2"/>
  <Dimension name="current" i="1"/>
  <Dimension name="resistance" m="1" l="2" t="-3" i="-2"/>
  <Dimension name="concentration" l="-3" n="1"/>
  <Dimension name="substance" n="1"/>
  <Dimension name="charge" t="1" i="1"/>
  <Dimension name="temperature" k="1"/>

  <!-- Units -->
  <Unit symbol="s" dimension="time" power="0"/>
  <Unit symbol="ms" dimension="time" power="-3"/>
  <Unit symbol="us" dimension="time" power="-6"/>
  <Unit symbol="V" dimension="voltage" power="0"/>
  <Unit symbol="mV" dimension="voltage" power="-3"/>

Run TVBO

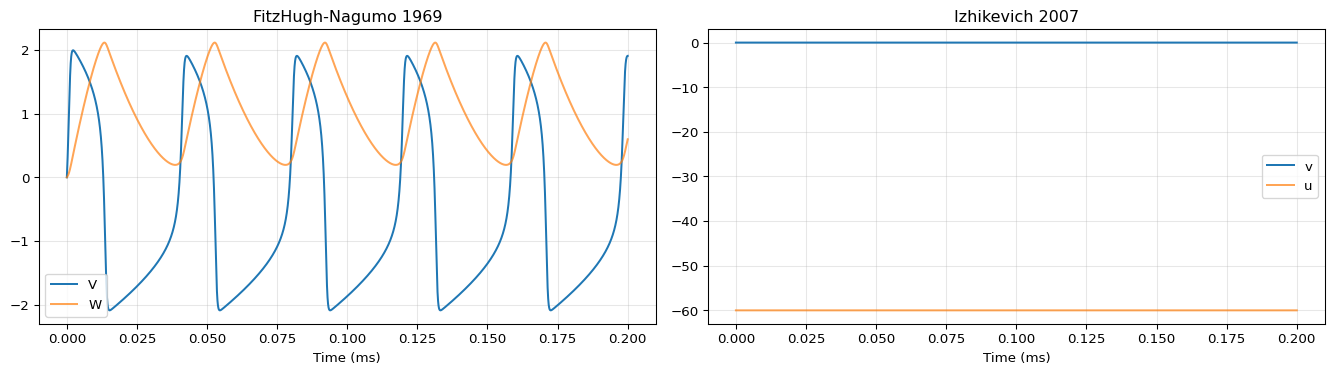

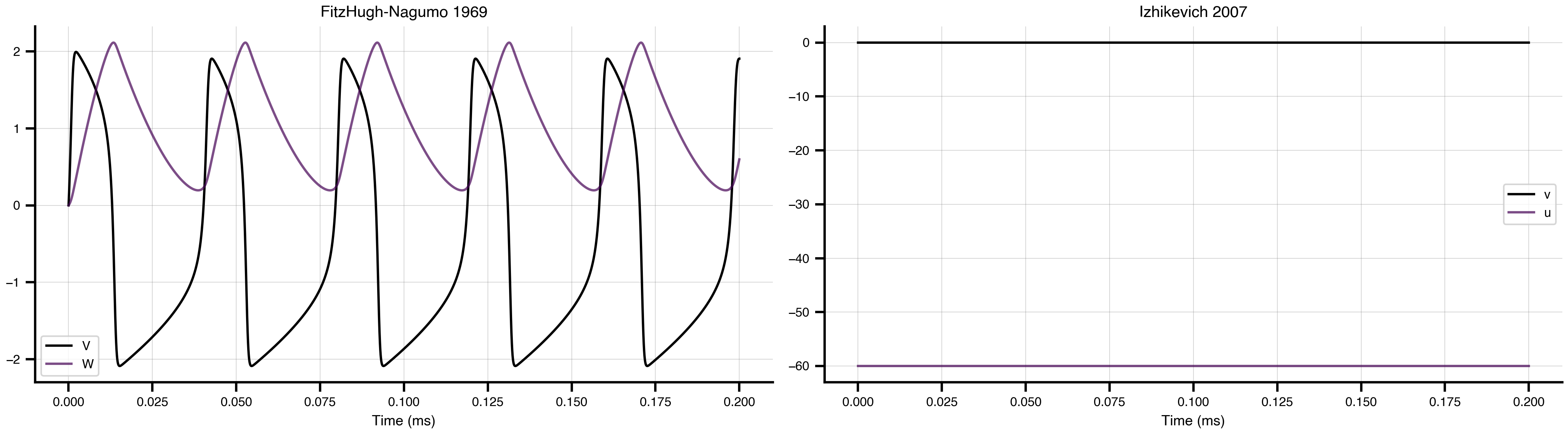

import numpy as np
import matplotlib.pyplot as plt

# Run FHN1969
result_fn = exp_fn1969.run("neuroml")
da_fn = result_fn.integration.data

# Run Iz2007
result_iz = exp_iz2007.run("neuroml")
da_iz = result_iz.integration.data

fig, axes = plt.subplots(1, 2, figsize=(14, 4))

# FHN1969
t = da_fn.coords['time'].values
vals = da_fn.values
axes[0].plot(t, vals[:, 0], label='V')
axes[0].plot(t, vals[:, 1], label='W', alpha=0.7)
axes[0].set_xlabel("Time (ms)")
axes[0].set_title("FitzHugh-Nagumo 1969")
axes[0].legend()
axes[0].grid(True, alpha=0.3)

# Iz2007
t = da_iz.coords['time'].values
vals = da_iz.values
axes[1].plot(t, vals[:, 0], label='v')
axes[1].plot(t, vals[:, 1], label='u', alpha=0.7)
axes[1].set_xlabel("Time (ms)")
axes[1].set_title("Izhikevich 2007")
axes[1].legend()
axes[1].grid(True, alpha=0.3)

plt.tight_layout()
plt.show()
