Output Specification

Declarative definition of simulation outputs in TVBO

Overview

The output attribute in TVBO model specifications defines which variables are included in simulation results. This is a declarative approach that explicitly specifies what the user wants to observe from the simulation.

Output Format

The output field is a list of string references to either:

  1. State variables - Variables that are integrated during simulation
  2. Derived variables - Variables computed from state variables (not integrated)
# Example: Output both state and derived variables
state_variables:
    x:
        equation:
            rhs: a * x
    y:
        equation:
            rhs: b * y

derived_variables:
    x_squared:
        equation:
            rhs: x**2
    signal:
        equation:
            rhs: x + y

output:
    - x           # State variable (integrated)
    - x_squared   # Derived variable (computed post-integration)
    - signal      # Another derived variable

How it Works

During simulation:

  1. Integration phase: Only state variables (x, y) are integrated using the numerical scheme
  2. Output phase: After integration, the output variables are extracted:
    • State variables are indexed directly from the integration trace
    • Derived variables are computed from the state variables in the trace

This means derived variables in output are computed outside the integration loop, from the full time series of state variables.

Example: Simple Dynamical System

Let’s create and run a simple experiment to demonstrate the output format.

Code
from tvbo import Dynamics
from tvbo.classes.experiment import SimulationExperiment
import tempfile
import os

Define a Simple Model

We’ll create a damped harmonic oscillator with both state variables and derived outputs:

yaml_content = """
name: DampedOscillator
description: "Simple damped harmonic oscillator with derived output"

parameters:
    omega:
        value: 1.0
        description: "Natural frequency"
    gamma:
        value: 0.1
        description: "Damping coefficient"

state_variables:
    x:
        description: "Position"
        equation:
            rhs: v
        initial_value: 1.0
    v:
        description: "Velocity"
        equation:
            rhs: -omega**2 * x - gamma * v
        initial_value: 0.0

derived_variables:
    energy:
        description: "Total energy (kinetic + potential)"
        equation:
            rhs: 0.5 * v**2 + 0.5 * omega**2 * x**2

output:
    - x        # Position (state variable)
    - v        # Velocity (state variable)
    - energy   # Total energy (derived variable)
"""

# Save to temp file and load
with tempfile.NamedTemporaryFile(mode='w', suffix='.yaml', delete=False) as f:
    f.write(yaml_content)
    temp_path = f.name

model = Dynamics.from_file(temp_path)
print(f"Model: {model.name}")
print(f"State variables: {list(model.state_variables.keys())}")
print(f"Derived variables: {list(model.derived_variables.keys())}")
print(f"Output: {model.output}")
Model: DampedOscillator
State variables: ['x', 'v']
Derived variables: ['energy']
Output: ['x', 'v', 'energy']

Create and Run Experiment

exp = SimulationExperiment(dynamics=model)

# Run the simulation using JAX backend
res = exp.run('jax')
print(f"Result type: {type(res).__name__}")
print(f"Result shape: {res.data.shape}")
print(f"Time points: {len(res.time)}")
Result type: ExperimentResult
Result shape: (81920, 3, 1, 1)
Time points: 81920

Visualize Results

res.plot()

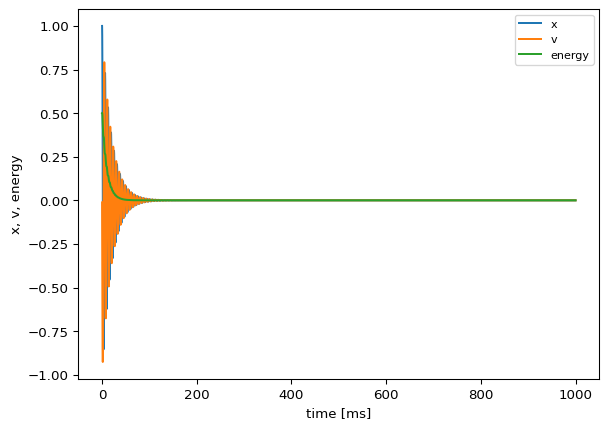

Damped oscillator simulation showing position, velocity, and energy

Inspect Output Variables

The result contains exactly what was specified in output:

# Access the labels
if hasattr(res, 'labels_dimensions') and res.labels_dimensions:
    print("Output variables:", res.labels_dimensions.get("State Variable", []))
Output variables: ['x', 'v', 'energy']

Key Points

  1. output is the declarative specification - it defines exactly what appears in results
  2. No duplication - each variable appears once in the output
  3. Derived variables are computed post-integration - they are not part of the integration state
  4. State variables can be outputs - they are simply indexed from the integration trace
  5. If output is empty, all state variables are returned (backwards compatibility)

Comparison: State vs Derived in Output

Variable Type In Integration? In Output
State variable in output ✅ Integrated ✅ Indexed from trace
Derived variable in output ❌ Not integrated ✅ Computed from trace
State variable NOT in output ✅ Integrated ❌ Not in result

Cleanup

Code
os.unlink(temp_path)
