Excitation-Inhibition Balance Tuning

Fitting Functional Connectivity Using FIC and EIB Algorithms

Try this notebook interactively:

Download .ipynb Download .qmd Open in Colab

Introduction

This tutorial demonstrates how to use TVB-Optim’s Network Dynamics framework to implement Excitation-Inhibition Balance (EIB) tuning for whole-brain models, following the methodology introduced by Schirner et al. (2023). The approach combines Feedback Inhibition Control (FIC) to locally maintain E-I balance with EIB tuning to globally optimize network connectivity patterns.

We’ll use a two-population Reduced Wong-Wang model with separate excitatory and inhibitory populations, and optimize the network coupling to match empirical functional connectivity from resting-state fMRI. This biologically-inspired learning algorithm demonstrates how neural network parameters can be tuned to achieve desired functional connectivity while maintaining physiologically realistic dynamics.

What this tutorial covers:

• Two-population neural mass model with explicit E-I dynamics
• Dual coupling mechanism (long-range excitation and feedforward inhibition)
• Feedback Inhibition Control (FIC) to maintain target excitatory activity
• EIB tuning algorithm to match empirical functional connectivity
• BOLD signal simulation and FC computation
• Both iterative (Part 2) and gradient-based (Part 3) optimization approaches

Reference: Schirner, M., Deco, G., & Ritter, P. (2023). Learning how network structure shapes decision-making for bio-inspired computing. Nature Communications, 14(1), Article 1. https://doi.org/10.1038/s41467-023-38626-y

# Set up environment
import os
import time
cpu = True
if cpu:
    N = 8
    os.environ['XLA_FLAGS'] = f'--xla_force_host_platform_device_count={N}'

# Import all required libraries
import numpy as np
import matplotlib.pyplot as plt
import matplotlib.patheffects as path_effects
import jax
import jax.numpy as jnp
import copy
import optax
from scipy import io
import equinox as eqx

# Jax enable x64
jax.config.update("jax_enable_x64", True)

# Import from tvboptim
from tvboptim.types import Parameter, BoundedParameter
from tvboptim.types.stateutils import show_parameters
from tvboptim.utils import set_cache_path, cache
from tvboptim.optim.optax import OptaxOptimizer
from tvboptim.optim.callbacks import MultiCallback, DefaultPrintCallback, SavingLossCallback

# Network dynamics imports
from tvboptim.experimental.network_dynamics import Network, solve, prepare
from tvboptim.experimental.network_dynamics.dynamics.tvb import ReducedWongWang
from tvboptim.experimental.network_dynamics.coupling import LinearCoupling, FastLinearCoupling
from tvboptim.experimental.network_dynamics.graph import DenseDelayGraph, DenseGraph
from tvboptim.experimental.network_dynamics.solvers import Heun, BoundedSolver
from tvboptim.experimental.network_dynamics.noise import AdditiveNoise
from tvboptim.data import load_structural_connectivity, load_functional_connectivity

# BOLD monitoring
from tvboptim.observations.tvb_monitors.bold import Bold

# Observation functions
from tvboptim.observations.observation import compute_fc, fc_corr, rmse

# Caching utilities
from tvboptim.utils import set_cache_path, cache

# Set cache path for tvboptim
set_cache_path("./ei_tuning")

Loading Structural Data and Target FC

We load the Desikan-Killiany parcellation structural connectivity and empirical functional connectivity from resting-state fMRI data.

# Load structural connectivity with region labels
weights, lengths, region_labels = load_structural_connectivity(name="dk_average")

# Normalize weights to [0, 1] range
weights = weights / jnp.max(weights)
n_nodes = weights.shape[0]

# Delays
speed = 3.0
delays = lengths / speed

# Load empirical functional connectivity as optimization target
fc_target = load_functional_connectivity(name="dk_average")

# Define consistent color palette derived from cividis
import matplotlib.colors as mcolors
cividis_cmap = plt.cm.cividis
cividis_colors = cividis_cmap(np.linspace(0, 1, 256))
accent_blue = cividis_cmap(0.3)  # Dark blue from cividis
accent_gold = cividis_cmap(0.85)  # Gold/yellow from cividis
accent_mid = cividis_cmap(0.6)   # Mid-tone

fig, (ax1, ax2, ax3) = plt.subplots(1, 3, figsize=(8.1, 4))

# Structural weights - use cividis
im1 = ax1.imshow(weights, cmap='cividis', vmin=0, vmax=1)
ax1.set_title('Structural Weights')
ax1.set_xlabel('Region')
ax1.set_ylabel('Region')
plt.colorbar(im1, ax=ax1, fraction=0.046)

# Delays - use cividis
im2 = ax2.imshow(delays, cmap='cividis')
ax2.set_title('Transmission Delays (ms)')
ax2.set_xlabel('Region')
ax2.set_ylabel('Region')
plt.colorbar(im2, ax=ax2, fraction=0.046, label='ms')

# Target FC - use cividis
im3 = ax3.imshow(fc_target, vmin=0, vmax=1.0, cmap='cividis')
ax3.set_title('Target Functional Connectivity')
ax3.set_xlabel('Region')
ax3.set_ylabel('Region')
plt.colorbar(im3, ax=ax3, label='Correlation', fraction=0.046)

plt.tight_layout()
plt.show()

Figure 1: Structural and functional connectivity data. Left: Normalized structural connection weights. Middle: Fiber transmission delays (ms). Right: Target empirical functional connectivity from resting-state fMRI.

Model Definitions

Two-Population Reduced Wong-Wang Model

This model extends the standard Reduced Wong-Wang with explicit excitatory (E) and inhibitory (I) populations, each with separate synaptic gating variables (S_e, S_i) and transfer functions. This enables independent control of E-I balance via the J_i parameter.

from typing import Tuple
from tvboptim.experimental.network_dynamics.dynamics.base import AbstractDynamics
from tvboptim.experimental.network_dynamics.core.bunch import Bunch

class ReducedWongWangEIB(AbstractDynamics):
    """Two-population Reduced Wong-Wang model with E-I balance support"""

    STATE_NAMES = ('S_e', 'S_i')
    INITIAL_STATE = (0.001, 0.001)
    AUXILIARY_NAMES = ('H_e', 'H_i')

    DEFAULT_PARAMS = Bunch(
        # Excitatory population parameters
        a_e=310.0,         # Input gain parameter
        b_e=125.0,         # Input shift parameter [Hz]
        d_e=0.160,         # Input scaling parameter [s]
        gamma_e=0.641/1000,  # Kinetic parameter
        tau_e=100.0,       # NMDA decay time constant [ms]
        w_p=1.4,           # Excitatory recurrence weight
        W_e=1.0,           # External input scaling weight

        # Inhibitory population parameters
        a_i=615.0,         # Input gain parameter
        b_i=177.0,         # Input shift parameter [Hz]
        d_i=0.087,         # Input scaling parameter [s]
        gamma_i=1.0/1000,  # Kinetic parameter
        tau_i=10.0,        # NMDA decay time constant [ms]
        W_i=0.7,           # External input scaling weight

        # Synaptic weights
        J_N=0.15,          # NMDA current [nA]
        J_i=1.0,           # Inhibitory synaptic weight

        # External inputs
        I_o=0.382,         # Background input current
        I_ext=0.0,         # External stimulation current

        # Coupling parameters
        lamda=1.0,         # Lambda: inhibitory coupling scaling
    )

    COUPLING_INPUTS = {
        'coupling': 2,  # Long-range excitation and Feedforward inhibition
    }

    def dynamics(
        self,
        t: float,
        state: jnp.ndarray,
        params: Bunch,
        coupling: Bunch,
        external: Bunch
    ) -> Tuple[jnp.ndarray, jnp.ndarray]:
        """Compute two-population Wong-Wang dynamics with dual coupling."""

        # Unpack state variables
        S_e = state[0]  # Excitatory synaptic gating
        S_i = state[1]  # Inhibitory synaptic gating

        # Unpack coupling inputs
        c_lre = params.J_N * coupling.coupling[0]  # Long-range excitation
        c_ffi = params.J_N * coupling.coupling[1]  # Feedforward inhibition

        # Excitatory population input
        J_N_S_e = params.J_N * S_e
        x_e_pre = (params.w_p * J_N_S_e - params.J_i * S_i +
                   params.W_e * params.I_o + c_lre + params.I_ext)

        # Excitatory transfer function
        x_e = params.a_e * x_e_pre - params.b_e
        H_e = x_e / (1.0 - jnp.exp(-params.d_e * x_e))

        # Excitatory dynamics
        dS_e_dt = -(S_e / params.tau_e) + (1.0 - S_e) * H_e * params.gamma_e

        # Inhibitory population input
        x_i_pre = J_N_S_e - S_i + params.W_i * params.I_o + params.lamda * c_ffi

        # Inhibitory transfer function
        x_i = params.a_i * x_i_pre - params.b_i
        H_i = x_i / (1.0 - jnp.exp(-params.d_i * x_i))

        # Inhibitory dynamics
        dS_i_dt = -(S_i / params.tau_i) + H_i * params.gamma_i

        # Package results
        derivatives = jnp.array([dS_e_dt, dS_i_dt])
        auxiliaries = jnp.array([H_e, H_i])

        return derivatives, auxiliaries

Dual-Weight EIB Coupling

This coupling mechanism produces two outputs from incoming excitatory activity: long-range excitation (wLRE) and feedforward inhibition (wFFI). Separate weight matrices enable independent tuning of excitatory and inhibitory pathways.

from tvboptim.experimental.network_dynamics.coupling.base import InstantaneousCoupling

class EIBLinearCoupling(InstantaneousCoupling):
    """EIB Linear coupling with separate excitatory and inhibitory weight matrices.

    This coupling produces two outputs:
        c_lre: Long-range excitation (wLRE * S_e)
        c_ffi: Feedforward inhibition (wFFI * S_e)

    Both couplings are driven by the excitatory activity (S_e) from other regions.
    """

    N_OUTPUT_STATES = 2  # Produces two coupling outputs

    DEFAULT_PARAMS = Bunch(
        wLRE = 1.0,  # Long-range excitation weight matrix
        wFFI = 1.0,  # Feedforward inhibition weight matrix
    )

    def pre(
        self,
        incoming_states: jnp.ndarray,
        local_states: jnp.ndarray,
        params: Bunch
    ) -> jnp.ndarray:
        """Pre-synaptic transformation: multiply S_e with wLRE and wFFI."""
        # incoming_states[0] is S_e from all source nodes
        S_e = incoming_states[0]  # [n_target, n_source]
        # Apply weights: element-wise multiply S_e with each weight matrix
        # params.wLRE and params.wFFI have shape [n_nodes, n_nodes]
        c_lre = S_e * params.wLRE  # [n_target, n_source]
        c_ffi = S_e * params.wFFI  # [n_target, n_source]

        # Stack into [2, n_target, n_source]
        return jnp.stack([c_lre, c_ffi], axis=0)

    def post(
        self,
        summed_inputs: jnp.ndarray,
        local_states: jnp.ndarray,
        params: Bunch
    ) -> jnp.ndarray:
        """Post-synaptic transformation: pass through without scaling."""
        return summed_inputs

Building the Network Model

We combine the EIB dynamics with structural connectivity and initialize the dual weight matrices.

# Create network components
graph = DenseGraph(weights, region_labels=region_labels)
dynamics = ReducedWongWangEIB(J_i = jnp.ones((n_nodes)))

# Initialize EIB coupling with dual weight matrices
# wLRE and wFFI start as copies of structural connectivity
coupling = EIBLinearCoupling(incoming_states=["S_e"])

# Set the weight matrices to the proper shape based on structural connectivity
# Both start as scaled versions of structural connectivity
coupling.params.wLRE = jnp.ones((n_nodes, n_nodes)) #+ 0.8*fc_target  # [n_nodes, n_nodes]
coupling.params.wFFI = jnp.ones((n_nodes, n_nodes)) #- 0.8*fc_target  # [n_nodes, n_nodes]

# Small noise to break symmetry
noise = AdditiveNoise(sigma=0.01, apply_to="S_e")

# Assemble the network
network = Network(
    dynamics=dynamics,
    coupling={'coupling': coupling},  # Both use same coupling but produce different outputs
    graph=graph,
    noise=noise
)

print(f"Network created with {n_nodes} nodes")

Network created with 84 nodes

Initial Simulation

Before applying any tuning algorithms, we run an initial transient simulation to establish a baseline quasi-stationary state.

# Prepare simulation: compile model and initialize state
t1 = 5 * 60_000   # Simulation duration (ms) - 1 minute for initial transient
dt = 4.0      # Integration timestep (ms) matching original script
solver = BoundedSolver(Heun(), low=0.0, high=1.0)
model, state = prepare(network, solver, t1=t1, dt=dt)

# Run initial transient to reach quasi-stationary state
print("Running initial transient simulation...")
result_init = jax.block_until_ready(model(state))

# Update network with final state as new initial conditions
network.update_history(result_init)

# Prepare for shorter simulations used in EI tuning
bold_TR = 720.0
model_short, state_short = prepare(network, solver, t1=bold_TR, dt=dt)

print(f"Initial simulation complete. Final S_e mean: {result_init.data[-1, 0, :].mean():.3f}")
print(f"Initial simulation complete. Final S_i mean: {result_init.data[-1, 1, :].mean():.3f}")

Running initial transient simulation...
Initial simulation complete. Final S_e mean: 0.405
Initial simulation complete. Final S_i mean: 0.155

BOLD Signal Setup

We configure BOLD monitoring to convert neural activity into hemodynamic signals for FC computation.

# Create BOLD monitor - we'll monitor S_e (first state variable)
# The BOLD period is 720ms (TR) as in the original script
bold_monitor = Bold(
    period=bold_TR,           # BOLD sampling period (TR = 720 ms)
    downsample_period=4.0,  # Intermediate downsampling matches dt
    voi=0,                  # Monitor first state variable (S_e)
    history=result_init     # Use initial state as warm start for BOLD history
)

print("BOLD monitor initialized")

/tmp/ipykernel_4781/3882699545.py:3: DeprecationWarning: Bold is deprecated and will be removed in a future version. Use HRFBold (HRF convolution) or BalloonWindkesselBold (ODE integration) explicitly.
  bold_monitor = Bold(

BOLD monitor initialized

Utility Functions

We define shared evaluation functions used throughout the tutorial.

# Will be populated after initial simulation completes
model_eval, state_eval, _state = None, None, None

def setup_eval_model():
    """Setup evaluation model for FC computation (called after initial simulation)."""
    global model_eval, state_eval, _state
    model_eval, state_eval = prepare(network, Heun(), t1=t1, dt=dt)
    _state = copy.deepcopy(state_eval)

def eval_fc(J_i, wLRE, wFFI):
    """Evaluate FC for given parameters using a long simulation."""
    _state.dynamics.J_i = J_i
    _state.coupling.coupling.wLRE = wLRE
    _state.coupling.coupling.wFFI = wFFI

    # Run simulation
    raw_result = model_eval(_state)

    # Compute BOLD
    bold_signal = bold_monitor(raw_result)

    # Compute FC (skip initial transient)
    fc = compute_fc(bold_signal, skip_t=20)
    return fc

print("Utility functions defined")

Utility functions defined

Part 1: Feedback Inhibition Control (FIC)

Neural mass models with explicit E-I populations face stability challenges: runaway excitation, complete silencing, or heterogeneous operating points across regions. FIC solves this by adaptively adjusting the local inhibitory weight J_i to maintain excitatory activity at a target level (~0.25).

The update rule measures mean activity and adjusts inhibition proportionally:

\[\Delta J_i = \eta_{FIC} \cdot (\langle S_i \rangle \langle S_e \rangle - r_{target} \langle S_i \rangle)\]

When \(\langle S_e \rangle > r_{target}\), inhibition increases; when \(\langle S_e \rangle < r_{target}\), it decreases.

def FIC_update_rule(J_i, raw_data, eta_fic=0.1, target_fic=0.25):
    """Update J_i using FIC algorithm to maintain E-I balance."""
    # Compute mean activity over the simulation window
    mean_S_i = jnp.mean(raw_data[:, 1], axis=0)  # Mean S_i over time [n_nodes]
    mean_S_e = jnp.mean(raw_data[:, 0], axis=0)  # Mean S_e over time [n_nodes]

    # FIC update rule: increase J_i if E activity is too high
    # When mean_S_e > target_fic, d_J_i is positive, increasing inhibition
    d_J_i = eta_fic * (mean_S_i * mean_S_e - target_fic * mean_S_i)
    J_i_new = J_i + d_J_i

    return J_i_new

print("FIC update function defined")

FIC update function defined

Running FIC Tuning

Let’s now apply FIC in a simple loop to see how it stabilizes the network dynamics. We’ll run the simulation for multiple iterations, applying the FIC update rule after each step to gradually adjust J_i until excitatory activity converges to the target level.

# FIC tuning parameters
eta_fic = 0.5  # Learning rate for FIC
target_fic = 0.25  # Target excitatory activity level
n_fic_steps = 200  # Number of FIC iterations

@cache("fic_tuning", redo=False)
def run_fic_tuning():
    """Run FIC tuning loop with caching."""
    # Create a copy of the short simulation state for FIC tuning
    state_fic = copy.deepcopy(state_short)
    bold_monitor_fic = copy.deepcopy(bold_monitor)

    # Store initial state for comparison
    raw_result_pre_fic = model_short(state_fic)

    # Setup for tracking BOLD signal during FIC
    history_accessor = lambda tree: tree.history
    bold_signal_fic = []
    mean_S_e_history = []

    # Random key for noise updates
    key = jax.random.key(42)

    print("Starting FIC tuning...")

    # FIC tuning loop
    for i in range(n_fic_steps):
        # Simulate one time step
        raw_result = model_short(state_fic)

        # Compute BOLD signal for this step
        bold_result = bold_monitor_fic(raw_result)
        bold_signal_fic.append(bold_result.ys[0, 0, :])

        # Track mean excitatory activity
        mean_S_e = jnp.mean(raw_result.data[:, 0, :])
        mean_S_e_history.append(mean_S_e)

        # Update BOLD monitor history for next iteration
        new_history = jnp.roll(bold_monitor_fic.history, -raw_result.data.shape[0], axis=0)
        new_history = new_history.at[-raw_result.data.shape[0]:, :, :].set(raw_result.data[:, 0:1, :])
        bold_monitor_fic = eqx.tree_at(history_accessor, bold_monitor_fic, new_history)

        # Update initial conditions for next iteration
        state_fic.initial_state.dynamics = raw_result.data[-1]

        # Update noise realization: swap the in-scan PRNG key.
        key, subkey = jax.random.split(key, 2)
        state_fic.noise.key = subkey

        # Apply FIC update rule
        state_fic.dynamics.J_i = FIC_update_rule(state_fic.dynamics.J_i, raw_result.data, eta_fic=eta_fic, target_fic=target_fic)

        if (i + 1) % 50 == 0:
            print(f"  Step {i+1}/{n_fic_steps}, Mean S_e: {mean_S_e:.4f}, Target: {target_fic:.4f}")

    # Final simulation after FIC
    raw_result_post_fic = model_short(state_fic)

    # Convert lists to arrays
    bold_signal_fic = jnp.array(bold_signal_fic)
    mean_S_e_history = jnp.array(mean_S_e_history)

    print(f"FIC tuning complete!")
    print(f"Final mean S_e: {mean_S_e_history[-1]:.4f} (target: {target_fic:.4f})")

    return {
        'state_fic': state_fic,
        'bold_monitor_fic': bold_monitor_fic,
        'raw_result_pre_fic': raw_result_pre_fic,
        'raw_result_post_fic': raw_result_post_fic,
        'bold_signal_fic': bold_signal_fic,
        'mean_S_e_history': mean_S_e_history
    }

# Run FIC tuning (cached)
fic_results = run_fic_tuning()
state_fic = fic_results['state_fic']
bold_monitor_fic = fic_results['bold_monitor_fic']
raw_result_pre_fic = fic_results['raw_result_pre_fic']
raw_result_post_fic = fic_results['raw_result_post_fic']
bold_signal_fic = fic_results['bold_signal_fic']
mean_S_e_history = fic_results['mean_S_e_history']

FIC Results

fig = plt.figure(figsize=(8.1, 7))
gs = fig.add_gridspec(2, 2, hspace=0.3, wspace=0.3)

# Use cividis-derived colors for consistency
target_color = accent_gold
trace_color = accent_blue
convergence_color = accent_mid

# Top left: Pre-FIC timeseries
ax1 = fig.add_subplot(gs[0, 0])
ax1.plot(raw_result_pre_fic.data[:, 0, :], alpha=0.6, linewidth=0.8, color=trace_color)
ax1.axhline(target_fic, color=target_color, linestyle='--', linewidth=2, label=f'Target ({target_fic})')
ax1.set_xlabel('Time step')
ax1.set_ylabel('S_e (Excitatory activity)')
ax1.set_title('Before FIC')
ax1.set_ylim(0, 1)
ax1.legend()
ax1.grid(True, alpha=0.3)

# Top right: Post-FIC timeseries
ax2 = fig.add_subplot(gs[0, 1])
ax2.plot(raw_result_post_fic.data[:, 0, :], alpha=0.6, linewidth=0.8, color=trace_color)
ax2.axhline(target_fic, color=target_color, linestyle='--', linewidth=2, label=f'Target ({target_fic})')
ax2.set_xlabel('Time step')
ax2.set_ylabel('S_e (Excitatory activity)')
ax2.set_title('After FIC')
ax2.set_ylim(0, 1)
ax2.legend()
ax2.grid(True, alpha=0.3)

# Bottom left: Convergence
ax3 = fig.add_subplot(gs[1, 0])
ax3.plot(mean_S_e_history, linewidth=2, label='Mean S_e', color=accent_blue)
ax3.axhline(target_fic, color=target_color, linestyle='--', linewidth=2, label=f'Target ({target_fic})')
ax3.set_xlabel('FIC iteration')
ax3.set_ylabel('Mean S_e')
ax3.set_title('FIC Convergence')
ax3.legend()
ax3.grid(True, alpha=0.3)

# Bottom right: BOLD signal evolution with mean overlay
ax4 = fig.add_subplot(gs[1, 1])
# Plot all regions with light colors from cividis
n_regions = bold_signal_fic.shape[1]
colors_bold = cividis_cmap(np.linspace(0.2, 0.9, n_regions))
for i in range(n_regions):
    ax4.plot(bold_signal_fic[:, i], alpha=0.3, linewidth=0.8, color=colors_bold[i])
# Overlay mean BOLD signal in darker color
mean_bold = np.mean(bold_signal_fic, axis=1)
ax4.plot(mean_bold, color=accent_blue, linewidth=2.5, label='Mean', alpha=0.9)
ax4.set_xlabel('BOLD time point (TR)')
ax4.set_ylabel('BOLD signal')
ax4.set_title('BOLD Signal Evolution (all regions + mean)')
ax4.legend()
ax4.grid(True, alpha=0.3)

plt.tight_layout()
plt.show()

/tmp/ipykernel_4781/1280621709.py:57: UserWarning: This figure includes Axes that are not compatible with tight_layout, so results might be incorrect.
  plt.tight_layout()

Figure 2: FIC algorithm results. Top row: Excitatory activity (S_e) before and after FIC tuning, with target level shown (dashed line). Bottom left: Convergence of mean S_e to target over iterations. Bottom right: Evolution of BOLD signal during FIC tuning showing stabilization.

Part 2: Excitation-Inhibition Balance (EIB) Tuning

FIC establishes local E-I balance but doesn’t control network-level functional connectivity. EIB extends this by adjusting the dual coupling weights (wLRE, wFFI) to match empirical FC patterns.

The update rules increase wLRE and decrease wFFI when FC is too low, and vice versa when FC is too high:

\[\Delta w_{LRE}^{ij} = \eta_{EIB} \cdot (FC_{target}^{ij} - FC_{pred}^{ij}) \cdot RMSE_i\]

\[\Delta w_{FFI}^{ij} = -\eta_{EIB} \cdot (FC_{target}^{ij} - FC_{pred}^{ij}) \cdot RMSE_i\]

The row-wise RMSE term weights updates by each region’s overall FC error.

def EI_update_rule(wLRE, wFFI, fc_pred, fc_target, eta_eib=0.02):
    """Update wLRE and wFFI using EIB algorithm"""
    # Compute FC difference (positive means FC is too low, need more coupling)
    diff_FC = fc_target - fc_pred

    # Compute row-wise RMSE to weight updates by overall error magnitude
    rmse_FC = rmse(fc_target, fc_pred, axis=1)[:, None]  # [n_nodes, 1]

    # Update rules:
    # - Increase wLRE when FC is too low (strengthen excitation)
    # - Decrease wFFI when FC is too low (reduce inhibition)
    # Note: opposite signs ensure coordinated adjustment
    wLRE_new = jnp.clip(wLRE + eta_eib * diff_FC * rmse_FC, 0, None)
    wFFI_new = jnp.clip(wFFI - eta_eib * diff_FC * rmse_FC, 0, None)

    return wLRE_new, wFFI_new

print("EIB update function defined")

EIB update function defined

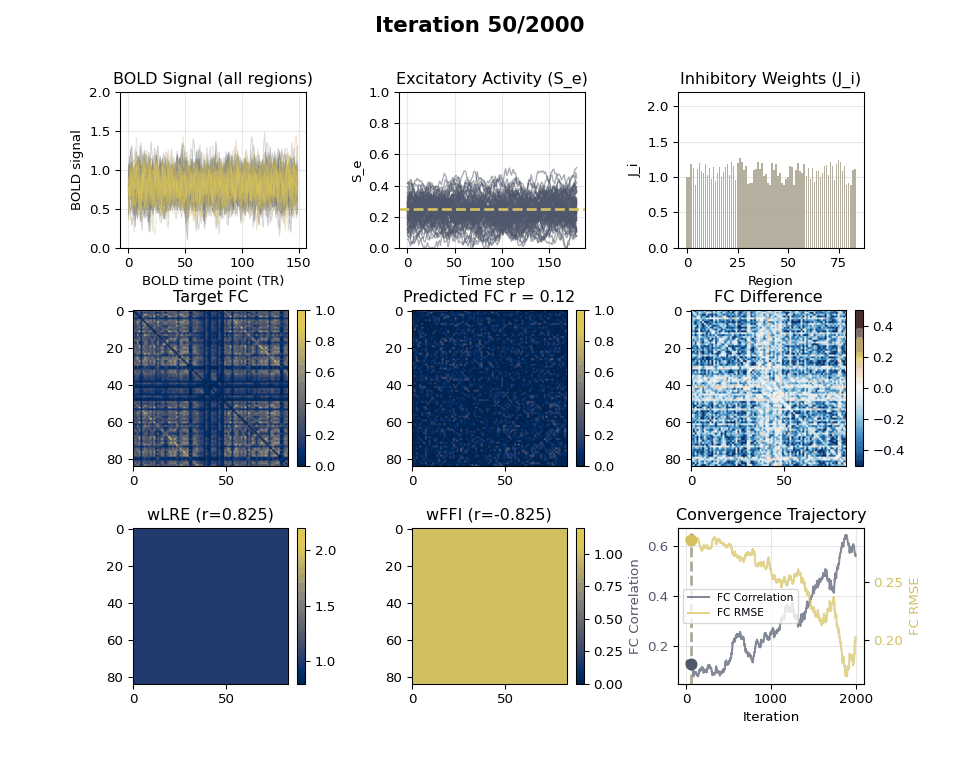

Combined FIC+EIB Tuning

We now run both algorithms simultaneously: FIC maintains local balance at each iteration, while EIB adjusts coupling weights based on a sliding window of BOLD signal to match target FC.

# Combined FIC+EIB tuning parameters
eta_fic = 0.1  # FIC learning rate
eta_eib = 0.005  # EIB learning rate (smaller than FIC)
window_size = 150  # Number of BOLD TRs for FC calculation
n_eib_steps = 2000  # Total number of iterations
snapshot_interval = 50  # Collect snapshots every N iterations

@cache("eib_tuning", redo=False)
def run_eib_tuning():
    """Run combined FIC+EIB tuning loop with caching."""
    # Initialize state for combined tuning
    state_ei = copy.deepcopy(state_fic)
    bold_monitor_ei = copy.deepcopy(bold_monitor_fic)
    history_accessor = lambda tree: tree.history

    # BOLD signal sliding window
    bold_signal = bold_signal_fic[-window_size:].reshape((window_size, 1, n_nodes))

    # Track metrics during tuning
    fc_correlations = []
    fc_rmse_values = []

    # Random key for noise
    key = jax.random.key(43)

    # Store initial state for comparison
    raw_result_pre_eib = model_short(state_ei)

    # Data collection for animation
    snapshots = {
        'iterations': [],
        'bold_signal': [],
        'raw_timeseries': [],
        'J_i': [],
        'fc_pred': [],
        'fc_corr': [],
        'fc_rmse': [],
        'wLRE': [],
        'wFFI': [],
    }

    print("Starting combined FIC+EIB tuning...")

    # Combined FIC+EIB tuning loop
    for i in range(n_eib_steps):
        # 1. Simulate neural dynamics for one BOLD period
        raw_result = model_short(state_ei)

        # 2. Compute BOLD signal
        bold_result = bold_monitor_ei(raw_result)

        # 3. Update BOLD signal sliding window (rolling buffer)
        bold_signal = jnp.roll(bold_signal, -1, axis=0)
        bold_signal = bold_signal.at[-1, 0, :].set(bold_result.ys[0, 0, :])

        # 4. Update BOLD monitor history for hemodynamic state continuity
        new_history = jnp.roll(bold_monitor_ei.history, -raw_result.data.shape[0], axis=0)
        new_history = new_history.at[-raw_result.data.shape[0]:, :, :].set(raw_result.data[:, 0:1, :])
        bold_monitor_ei = eqx.tree_at(history_accessor, bold_monitor_ei, new_history)

        # 5. Update initial conditions for next simulation
        state_ei.initial_state.dynamics = raw_result.data[-1]

        # 6. Update noise realization: swap the in-scan PRNG key.
        key, subkey = jax.random.split(key, 2)
        state_ei.noise.key = subkey

        # 7. Apply FIC update (every iteration)
        state_ei.dynamics.J_i = FIC_update_rule(
            state_ei.dynamics.J_i,
            raw_result.data,
            eta_fic=eta_fic,
            target_fic=target_fic
        )

        # 8. Apply EIB update
        # Compute FC from BOLD signal window
        fc_pred = compute_fc(bold_signal)

        # Update wLRE and wFFI using EIB rule
        wLRE_new, wFFI_new = EI_update_rule(
            state_ei.coupling.coupling.wLRE,
            state_ei.coupling.coupling.wFFI,
            fc_pred,
            fc_target,
            eta_eib=((i+1)/n_eib_steps) * eta_eib
        )
        state_ei.coupling.coupling.wLRE = wLRE_new
        state_ei.coupling.coupling.wFFI = wFFI_new

        # Track FC quality metrics
        fc_corr_val = fc_corr(fc_pred, fc_target)
        fc_rmse_val = jnp.sqrt(jnp.mean((fc_pred - fc_target)**2))
        fc_correlations.append(fc_corr_val)
        fc_rmse_values.append(fc_rmse_val)

        # Collect snapshots for animation every N iterations
        if (i + 1) % snapshot_interval == 0:
            snapshots['iterations'].append(i + 1)
            snapshots['bold_signal'].append(np.array(bold_signal[:, 0, :]))  # [window_size, n_nodes]
            snapshots['raw_timeseries'].append(np.array(raw_result.data[:, 0, :]))  # [time_steps, n_nodes]
            snapshots['J_i'].append(np.array(state_ei.dynamics.J_i.flatten()))  # [n_nodes]
            snapshots['wLRE'].append(np.array(state_ei.coupling.coupling.wLRE))  # [n_nodes, n_nodes]
            snapshots['wFFI'].append(np.array(state_ei.coupling.coupling.wFFI))  # [n_nodes, n_nodes]
            snapshots['fc_pred'].append(np.array(fc_pred))
            snapshots['fc_corr'].append(float(fc_corr_val))
            snapshots['fc_rmse'].append(float(fc_rmse_val))

            # Print progress
            print(f"  Step {i+1}/{n_eib_steps}, FC corr: {fc_corr_val:.4f}, FC RMSE: {fc_rmse_val:.4f}")

    # Store final state for comparison
    raw_result_post_eib = model_short(state_ei)

    # Convert metrics to arrays
    fc_correlations = jnp.array(fc_correlations)
    fc_rmse_values = jnp.array(fc_rmse_values)

    print("Combined FIC+EIB tuning complete!")
    print(f"Collected {len(snapshots['iterations'])} snapshots for animation")

    return {
        'state_ei': state_ei,
        'raw_result_pre_eib': raw_result_pre_eib,
        'raw_result_post_eib': raw_result_post_eib,
        'fc_correlations': fc_correlations,
        'fc_rmse_values': fc_rmse_values,
        'snapshots': snapshots
    }

# Run EIB tuning (cached)
eib_results = run_eib_tuning()
state_ei = eib_results['state_ei']
raw_result_pre_eib = eib_results['raw_result_pre_eib']
raw_result_post_eib = eib_results['raw_result_post_eib']
fc_correlations = eib_results['fc_correlations']
fc_rmse_values = eib_results['fc_rmse_values']
snapshots = eib_results['snapshots']

Visualizing Tuning Progress: Animated GIF

Now we can create an animated GIF showing the tuning progression using the collected snapshots.

from matplotlib.animation import FuncAnimation, PillowWriter
import numpy as np

def create_animation_gif(output_path='ei_tuning_animation.gif', fps=2):
    """Create an animated GIF showing the tuning progression."""

    fig = plt.figure(figsize=(10, 8), layout = "tight")

    def update_frame(snapshot_idx):
        """Update function for animation."""
        fig.clear()
        gs = fig.add_gridspec(3, 3, hspace=0.4, wspace=0.5)

        iteration = snapshots['iterations'][snapshot_idx]
        bold_sig = snapshots['bold_signal'][snapshot_idx]
        raw_ts = snapshots['raw_timeseries'][snapshot_idx]
        J_i_vals = snapshots['J_i'][snapshot_idx]
        wLRE_mat = snapshots['wLRE'][snapshot_idx]
        wFFI_mat = snapshots['wFFI'][snapshot_idx]
        fc_pred_mat = snapshots['fc_pred'][snapshot_idx]
        fc_corr_val = snapshots['fc_corr'][snapshot_idx]
        fc_rmse_val = snapshots['fc_rmse'][snapshot_idx]

        # Define harmonized colors for animation
        cividis_cmap = plt.cm.cividis
        anim_blue = cividis_cmap(0.3)
        anim_gold = cividis_cmap(0.85)
        anim_mid = cividis_cmap(0.6)

        # Row 1: BOLD signal and raw timeseries
        ax1 = fig.add_subplot(gs[0, 0])
        # Plot all BOLD traces with cividis colors
        n_bold_regions = bold_sig.shape[1]
        colors_anim_bold = cividis_cmap(np.linspace(0.2, 0.9, n_bold_regions))
        for i in range(n_bold_regions):
            ax1.plot(bold_sig[:, i], alpha=0.3, linewidth=0.8, color=colors_anim_bold[i])
        ax1.set_xlabel('BOLD time point (TR)')
        ax1.set_ylabel('BOLD signal')
        ax1.set_title('BOLD Signal (all regions)')
        ax1.grid(True, alpha=0.3)
        ax1.set_ylim(0, 2)

        ax2 = fig.add_subplot(gs[0, 1])
        ax2.plot(raw_ts, alpha=0.5, linewidth=1, color=anim_blue)
        ax2.axhline(target_fic, color=anim_gold, linestyle='--', linewidth=2)
        ax2.set_xlabel('Time step')
        ax2.set_ylabel('S_e')
        ax2.set_title('Excitatory Activity (S_e)')
        ax2.set_ylim(0, 1)
        ax2.grid(True, alpha=0.3)

        # Row 1, Col 3: J_i distribution
        ax3 = fig.add_subplot(gs[0, 2])
        ax3.bar(range(n_nodes), J_i_vals, alpha=0.7, color=anim_mid)
        ax3.set_xlabel('Region')
        ax3.set_ylabel('J_i')
        ax3.set_title('Inhibitory Weights (J_i)')
        ax3.grid(True, alpha=0.3, axis='y')
        ax3.set_ylim(0, 2.2)

        # Row 2: FC matrices - use cividis for FC, diverging for difference
        ax4 = fig.add_subplot(gs[1, 0])
        im4 = ax4.imshow(fc_target, vmin=0, vmax=1.0, cmap='cividis')
        ax4.set_title('Target FC')
        plt.colorbar(im4, ax=ax4, fraction=0.046)

        ax5 = fig.add_subplot(gs[1, 1])
        im5 = ax5.imshow(fc_pred_mat, vmin=0, vmax=1.0, cmap='cividis')
        ax5.set_title(f'Predicted FC r = {fc_corr_val:.2f}')
        plt.colorbar(im5, ax=ax5, fraction=0.046)

        ax6 = fig.add_subplot(gs[1, 2])
        fc_diff = fc_pred_mat - fc_target
        im6 = ax6.imshow(fc_diff, vmin=-0.5, vmax=0.5, cmap='RdBu_r')
        ax6.set_title('FC Difference')
        plt.colorbar(im6, ax=ax6, fraction=0.046)

        # Row 3: wLRE and wFFI matrices - use cividis
        ax7 = fig.add_subplot(gs[2, 0])
        im7 = ax7.imshow(wLRE_mat, vmin=0.8, vmax=2.2, cmap='cividis')
        wLRE_corr = np.corrcoef(wLRE_mat.flatten(), fc_target.flatten())[0, 1]
        ax7.set_title(f'wLRE (r={wLRE_corr:.3f})')
        plt.colorbar(im7, ax=ax7, fraction=0.046)

        ax8 = fig.add_subplot(gs[2, 1])
        im8 = ax8.imshow(wFFI_mat, vmin=0, vmax=1.2, cmap='cividis')
        wFFI_corr = np.corrcoef(wFFI_mat.flatten(), fc_target.flatten())[0, 1]
        ax8.set_title(f'wFFI (r={wFFI_corr:.3f})')
        plt.colorbar(im8, ax=ax8, fraction=0.046)

        # Row 3, Col 3: Convergence trajectory with position marker
        ax9 = fig.add_subplot(gs[2, 2])
        ax9_twin = ax9.twinx()

        # Plot full trajectories with harmonized colors
        line1 = ax9.plot(fc_correlations, linewidth=1.5, alpha=0.7, color=anim_blue, label='FC Correlation')
        line2 = ax9_twin.plot(fc_rmse_values, linewidth=1.5, alpha=0.7, color=anim_gold, label='FC RMSE')

        # Add vertical line at current position
        current_iter = snapshots['iterations'][snapshot_idx]
        ax9.axvline(current_iter, color=anim_mid, linestyle='--', linewidth=2, alpha=0.8)

        # Add marker at current position
        ax9.plot(current_iter, fc_correlations[current_iter], 'o', color=anim_blue, markersize=8, zorder=5)
        ax9_twin.plot(current_iter, fc_rmse_values[current_iter], 'o', color=anim_gold, markersize=8, zorder=5)

        # Labels and styling
        ax9.set_xlabel('Iteration')
        ax9.set_ylabel('FC Correlation', color=anim_blue)
        ax9.tick_params(axis='y', labelcolor=anim_blue)
        ax9_twin.set_ylabel('FC RMSE', color=anim_gold)
        ax9_twin.tick_params(axis='y', labelcolor=anim_gold)
        ax9.set_title('Convergence Trajectory')
        ax9.grid(True, alpha=0.3)

        # Legend
        lines = line1 + line2
        labels = [l.get_label() for l in lines]
        ax9.legend(lines, labels, loc='center left', fontsize=8)

        fig.suptitle(f'Iteration {iteration}/{n_eib_steps}', fontsize=16, fontweight='bold')

    # Create animation with last frame pause
    # Create frame sequence with last frame repeated to make it pause longer
    n_frames = len(snapshots['iterations'])
    last_frame_repeats = 5  # Repeat last frame 5 times (2.5 seconds at 2 fps)
    frame_sequence = list(range(n_frames)) + [n_frames - 1] * last_frame_repeats

    anim = FuncAnimation(
        fig,
        update_frame,
        frames=frame_sequence,
        interval=1000/fps,  # milliseconds between frames
        repeat=True
    )

    # Save as GIF
    writer = PillowWriter(fps=fps)
    anim.save(output_path, writer=writer)
    plt.close()

    print(f"Animation saved to {output_path}")
    return output_path

# Create the GIF (may take a minute depending on number of snapshots)
gif_path = create_animation_gif('ei_tuning_animation.gif', fps=2)

Combined FIC+EIB tuning animation. Evolution of neural dynamics and coupling parameters over iterations. Top row: BOLD signal for all regions, excitatory activity (S_e) converging to target (gold line), and inhibitory weights (J_i). Middle row: Target FC, predicted FC with quality metrics, and FC error (diverging colormap). Bottom row: Optimized coupling weights (wLRE, wFFI) shown in cividis, and dual-axis convergence trajectories (blue: correlation, gold: RMSE). All colors harmonized with cividis palette.

EIB Results

# Setup evaluation model
setup_eval_model()

# Compute FC before EIB (but after initial FIC from earlier)
print("Computing pre-EIB functional connectivity...")
fc_pre_eib = eval_fc(
    state.dynamics.J_i,
    state.coupling.coupling.wLRE,
    state.coupling.coupling.wFFI
)

# Compute FC after combined FIC+EIB tuning
print("Computing post-EIB functional connectivity...")
fc_post_eib = eval_fc(
    state_ei.dynamics.J_i,
    state_ei.coupling.coupling.wLRE,
    state_ei.coupling.coupling.wFFI
)

# Compute quality metrics
fc_corr_pre = fc_corr(fc_pre_eib, fc_target)
fc_corr_post = fc_corr(fc_post_eib, fc_target)
fc_rmse_pre = jnp.sqrt(jnp.mean((fc_pre_eib - fc_target)**2))
fc_rmse_post = jnp.sqrt(jnp.mean((fc_post_eib - fc_target)**2))

print(f"\nFC Quality Metrics:")
print(f"  Pre-EIB  - Correlation: {fc_corr_pre:.4f}, RMSE: {fc_rmse_pre:.4f}")
print(f"  Post-EIB - Correlation: {fc_corr_post:.4f}, RMSE: {fc_rmse_post:.4f}")
print(f"  Improvement: Δcorr = {fc_corr_post - fc_corr_pre:+.4f}, ΔRMSE = {fc_rmse_post - fc_rmse_pre:+.4f}")

fig = plt.figure(figsize=(8.1, 4.63))
gs = fig.add_gridspec(2, 3, hspace=0.35, wspace=0.4, height_ratios=[1, 0.6])

# Top row: FC matrices - use cividis
ax1 = fig.add_subplot(gs[0, 0])
im1 = ax1.imshow(fc_target, vmin=0, vmax=1.0, cmap='cividis')
ax1.set_title('Target FC\n(Empirical)')
ax1.set_xlabel('Region')
ax1.set_ylabel('Region')
plt.colorbar(im1, ax=ax1, fraction=0.046)

ax2 = fig.add_subplot(gs[0, 1])
im2 = ax2.imshow(fc_pre_eib, vmin=0, vmax=1.0, cmap='cividis')
ax2.set_title(f'Pre-EIB FC\nCorr: {fc_corr_pre:.3f}, RMSE: {fc_rmse_pre:.3f}')
ax2.set_xlabel('Region')
plt.colorbar(im2, ax=ax2, fraction=0.046)

ax3 = fig.add_subplot(gs[0, 2])
im3 = ax3.imshow(fc_post_eib, vmin=0, vmax=1.0, cmap='cividis')
ax3.set_title(f'Post-EIB FC\nCorr: {fc_corr_post:.3f}, RMSE: {fc_rmse_post:.3f}')
ax3.set_xlabel('Region')
plt.colorbar(im3, ax=ax3, fraction=0.046)

# Bottom row: Dual-axis convergence plot spanning entire width
ax4 = fig.add_subplot(gs[1, :])
ax4_twin = ax4.twinx()

# Plot FC correlation on left axis
line1 = ax4.plot(fc_correlations, linewidth=2.5, color=accent_blue, label='FC Correlation')
ax4.set_xlabel('EIB iteration')
ax4.set_ylabel('FC Correlation with Target', color=accent_blue)
ax4.tick_params(axis='y', labelcolor=accent_blue)
ax4.set_xlim(0, len(fc_correlations))
ax4.grid(True, alpha=0.3)

# Plot FC RMSE on right axis
line2 = ax4_twin.plot(fc_rmse_values, linewidth=2.5, color=accent_gold, label='FC RMSE')
ax4_twin.set_ylabel('FC RMSE', color=accent_gold)
ax4_twin.tick_params(axis='y', labelcolor=accent_gold)

# Combined legend
lines = line1 + line2
labels = [l.get_label() for l in lines]
ax4.legend(lines, labels, loc='center left')
ax4.set_title('EIB Convergence')

plt.tight_layout()
plt.show()

/tmp/ipykernel_4781/3595903702.py:47: UserWarning: This figure includes Axes that are not compatible with tight_layout, so results might be incorrect.
  plt.tight_layout()

Figure 3: EIB tuning results. Top row: Functional connectivity comparison showing target empirical FC (left), pre-EIB simulation (middle), and post-EIB simulation (right) with quality metrics. Bottom: Convergence trajectories showing FC correlation (blue, left axis) increasing and FC RMSE (gold, right axis) decreasing over iterations.

Note

This iterative implementation prioritizes clarity over performance. Python loops prevent JIT compilation, and manual state management adds overhead. Part 3 demonstrates a gradient-based alternative that achieves similar results with automatic differentiation.

Part 3: Gradient-Based Optimization Approach

Rather than manually designing update rules, we reformulate EI tuning as a differentiable optimization problem: define a loss function combining FC error and activity deviation, mark parameters as optimizable, and use JAX autodiff with modern optimizers. This provides automatic gradients, adaptive learning rates, and cleaner code.

The loss function combines FC RMSE with activity deviation from the FIC target:

# Prepare simulation
t1_opt = 5 * 60_000
dt_opt = 4.0
solver_opt = BoundedSolver(Heun(), low=0.0, high=1.0)
model_opt, state_opt = prepare(network, solver_opt, t1=t1_opt, dt=dt_opt)

# Create BOLD monitor
bold_monitor_opt = Bold(
    period=bold_TR,
    downsample_period=4.0,
    voi=0,
    history=result_init
)

print("Optimization model prepared")

def loss(state):
    """Combined loss function for FC matching and E-I balance"""
    # Simulate neural dynamics
    ts = model_opt(state)

    # Compute BOLD signal from simulated activity
    bold = bold_monitor_opt(ts)

    # Loss component 1: FC discrepancy with empirical data
    fc_pred = compute_fc(bold, skip_t=30)  # Skip initial transient
    fc_loss = rmse(fc_pred, fc_target)

    # Loss component 2: Feedback inhibition control
    # Penalize deviation from target excitatory activity level
    mean_activity = jnp.mean(ts.data[-500:, 0, :], axis=0)  # Mean S_e over final timesteps
    activity_loss = jnp.mean((mean_activity - target_fic) ** 2)

    # Combined loss (both terms have similar scales)
    return fc_loss + activity_loss

# Evaluate initial loss
initial_loss = loss(state_opt)
print(f"Initial loss: {initial_loss:.4f}")

# Mark parameters for optimization (J_i, wLRE, wFFI) with appropriate constraints
state_opt.dynamics.J_i = Parameter(state_opt.dynamics.J_i)
state_opt.coupling.coupling.wLRE = BoundedParameter(jnp.ones((n_nodes, n_nodes)), low=0.0, high=jnp.inf)
state_opt.coupling.coupling.wFFI = BoundedParameter(jnp.ones((n_nodes, n_nodes)), low=0.0, high=jnp.inf)

Initial loss: 0.3238

@cache("gradient_optimization", redo=False)
def run_gradient_optimization():
    """Run gradient-based optimization with caching."""

    # Create optimizer with AdaBelief algorithm
    optimizer = OptaxOptimizer(
        loss,
        optax.adamaxw(learning_rate=0.033),
        callback=MultiCallback([DefaultPrintCallback(), SavingLossCallback()])
    )

    # Run optimization for 50 steps
    opt_state, opt_fitting_data = optimizer.run(state_opt, max_steps=66)

    return opt_state, opt_fitting_data

# Run optimization (cached)
optimized_state, fitting_data = run_gradient_optimization()

Loading gradient_optimization from cache, last modified 2026-05-22 15:21:58.648658

# Evaluate optimized FC
print("Evaluating optimized functional connectivity...")
fc_opt = eval_fc(
    optimized_state.dynamics.J_i,
    optimized_state.coupling.coupling.wLRE,
    optimized_state.coupling.coupling.wFFI
)

fc_corr_opt = fc_corr(fc_opt, fc_target)
fc_rmse_opt = rmse(fc_opt, fc_target)

print(f"\nOptimization Results:")
print(f"  Pre-Optimization  - Correlation: {fc_corr_pre:.4f}, RMSE: {fc_rmse_pre:.4f}")
print(f"  Post-Optimization - Correlation: {fc_corr_opt:.4f}, RMSE: {fc_rmse_opt:.4f}")
print(f"  Improvement: Δcorr = {fc_corr_opt - fc_corr_pre:+.4f}, ΔRMSE = {fc_rmse_opt - fc_rmse_pre:+.4f}")

Evaluating optimized functional connectivity...

Optimization Results:
  Pre-Optimization  - Correlation: 0.1418, RMSE: 0.2753
  Post-Optimization - Correlation: 0.8226, RMSE: 0.0906
  Improvement: Δcorr = +0.6808, ΔRMSE = -0.1847

# Extract loss values
loss_values = fitting_data["loss"].save
n_steps = len(loss_values)

fig = plt.figure(figsize=(8.1, 6))
gs = fig.add_gridspec(2, 3, hspace=0.3, wspace=0.4)

# Top left: Loss trajectory - use cividis-derived colors
ax1 = fig.add_subplot(gs[0, 0])
ax1.plot(loss_values, linewidth=2, color="k", alpha=0.9)
ax1.scatter(0, loss_values[0], s=80, color=accent_blue, zorder=5)
ax1.scatter(n_steps-1, loss_values.array[-1], s=80, color=accent_gold, zorder=5)
ax1.set_xlabel('Optimization Step')
ax1.set_ylabel('Combined Loss')
ax1.set_title('Loss Convergence')
ax1.grid(True, alpha=0.3)

# Top middle: wFFI matrix - use cividis
ax2 = fig.add_subplot(gs[0, 1])
im2 = ax2.imshow(optimized_state.coupling.coupling.wFFI, vmin=0, vmax=2, cmap='cividis')
ax2.set_title('Optimized wFFI')
ax2.set_xlabel('Source')
ax2.set_ylabel('Target')
plt.colorbar(im2, ax=ax2, fraction=0.046)

# Top right: wLRE matrix - use cividis
ax3 = fig.add_subplot(gs[0, 2])
im3 = ax3.imshow(optimized_state.coupling.coupling.wLRE, vmin=0, vmax=2, cmap='cividis')
ax3.set_title('Optimized wLRE')
ax3.set_xlabel('Source')
ax3.set_ylabel('Target')
plt.colorbar(im3, ax=ax3, fraction=0.046)

# Bottom row: FC comparison - use cividis
ax4 = fig.add_subplot(gs[1, 0])
im4 = ax4.imshow(fc_target, vmin=0, vmax=1.0, cmap='cividis')
ax4.set_title('Target FC')
plt.colorbar(im4, ax=ax4, fraction=0.046)

ax5 = fig.add_subplot(gs[1, 1])
im5 = ax5.imshow(fc_pre_eib, vmin=0, vmax=1.0, cmap='cividis')
ax5.set_title(f'Pre-Opt FC\nCorr: {fc_corr_pre:.3f}')
plt.colorbar(im5, ax=ax5, fraction=0.046)

ax6 = fig.add_subplot(gs[1, 2])
im6 = ax6.imshow(fc_opt, vmin=0, vmax=1.0, cmap='cividis')
ax6.set_title(f'Post-Opt FC\nCorr: {fc_corr_opt:.3f}')
plt.colorbar(im6, ax=ax6, fraction=0.046)

plt.show()

Figure 4: Gradient-based optimization results. Top left: Loss convergence trajectory. Top middle/right: Optimized coupling weight matrices (wFFI and wLRE). Bottom row: FC comparison showing target, pre-optimization, and post-optimization results with quality metrics.
